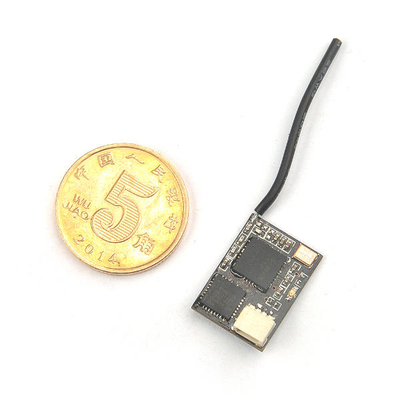

2.4G SP09X Micro DSM2/DSMX 3.3V-5V Satellite Receiver
2.4G SP09X Micro DSM2/DSMX3.3V-5VSatellite ReceiverSpecification: Item Name: 2.4G SP09X micro DSM2/DSMX Satellite receiverFrequency range: 2.403-2.479GhzInput power: 3.3V -- 5VResponse time: 22ms / 11msResolution: 1024/2048Display method: LEDOperating voltage: 3.3VWorking current: 60MASize: 18mm*13mm*5mmWeight: 0.9gAntenna length: 30mmData format: Serial portProtocol: DSM2/DSMXDistance: no ground interference (1 mfrom the ground )300mUses: Micro indoor/outdoor small aircraft./multi rotorCompatible Transmitters: DSM2 / DSMX series of remote controlBind procedureWith F3 flight controller:ConnectFlight controller to computer and open Cleanflight configurator From CLI tab type: set spektrum_sat_bind = 9 for DSMX or set spektrum_sat_bind = 5 for DSM2Type save and after Flight controller reboot
remove USB cable (=Power off the board)Wait a second and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned on while pressing the bind buttonAfter binding satellite led should be solid. Connect Betaflight and use receiver tab to test that satellite is working correctly.Final step is to go to CLI tab and type set spektrum_sat_bind = 0 and then type save. This must be done so that satellite doesnt go back to binding mode when the Flight controller is repowered again.Package Included:1x Receiver
remove USB cable (=Power off the board)Wait a second and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned on while pressing the bind buttonAfter binding satellite led should be solid. Connect Betaflight and use receiver tab to test that satellite is working correctly.Final step is to go to CLI tab and type set spektrum_sat_bind = 0 and then type save. This must be done so that satellite doesnt go back to binding mode when the Flight controller is repowered again.Package Included:1x Receiver
