Description: Item Name: Lipo battery charging board Item NO.: TP4056 Charging Method: linear charge Charging Current: 1A Adjustable Charge Accuracy: 1.5% Input Voltage: 4.5V-5.5 V Full Charge Voltage: 4.2 V Charging Indicator: Blue light lit charge, red light lit full charge Charging Input Interface: Mini USBWorking Temperature: -10 Degree to +85 Degree Reverse: NOWeight: 1.8g External Dimensions: 25 * 19 * 10mm Usage: Used for single lipo or multi-section lipo parallel charging, can take power from the USB (Universal Serial Bus) port. Current Regulation:R (K)I (m A)305020701013052504300340025801.666901.57801.339001.21000 Features: Use mature charging chip TP4056, simple peripheral circuits, good protection performance & high charging accuracy. Fully machinery automated processing, all patch parts manufacturing. Each module will be tested before shipment, high reliability. Current can be adjusted, just change the circuit board fixed resistors, can change the output to the 100m A-1000m A, very convenient. Note: Input reverse connection has no effect on the chip, but the output (battery end) reverse connection will burn out the chip. Ampere meter can only be series connected to the 5V input end. The charging current is best to be 0.37 times of the battery capacity, Charging wire cant be too thin or too long. Make sure the board has good contact with the battery. Chip at work about 60 degrees fever is normal. Package Included:20 x TP4056 1A Lipo Battery Charging Board ...
Only US$10.99, buy best 20pcs transparent heat shrinkable sleeve solder seal sleeve heat shrink wire connectors terminals waterproof welding tools sale online store at wholesale price. ...
Only US$7.99, buy best 20pcs uruav 1.6/2.1/2.6/3.1/4.1mm landing gear stopper set wheel collar for rc helicopter airplane sale online store at wholesale price. ...
Only US$8.99, buy best 20pcs uruav servo extension cable clips lock plastic safety servo cable wire lead buckle fixing holder for diy rc rc boat plane helicopter models sale online store at wholesale price. ...
100% Brand New High Quality Adapter Connectors for RC Batteries & Motor, Provides a Secure Connection for Battery & Motor Connections, Eliminates The Possibility of Wrong Polarity Connections, Connect ESC Battery with Electronic Equipment Such as RC Helicopter, Connect Brushless Motor With Electronic Speed Control, Low Resistance, & Gives The Best Electric Flow. Specification: Plug:T-Plug Female Male Adapter Connectors: 5 Pairs EC3 Female Male Adapter Connectors: 5 Pairs Silicone Wire: Colour: Red/ Black Length: 200cm (100 for each) Conductor Size: 14AWGHeat Shrink Tubing: Diameter: 4mm Length: 7 ~ 10cm Colour: Red/ Black Packaging Included:5X T Plug Female Plug 5X T Plug Male Plug 5X EC3 Female Male Plug 5X EC3 Male Plug 1X 200cm Silicone Wire 5X Red Heat Shrink Tubing 5X Black Heat Shrink Tubing ...

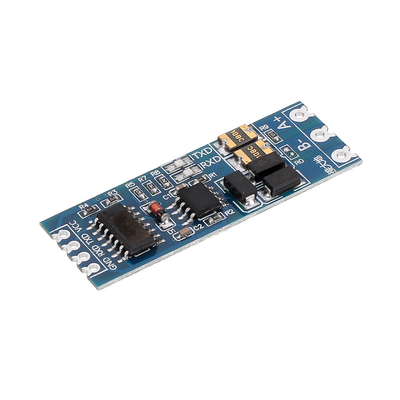

20pcs TTL to RS485 RS485 to TTL Bilateral Module UART Port Serial Converter Module 3.3/5V Power Signal
