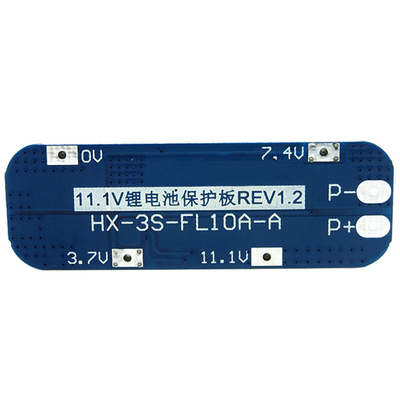

2pcs 3 String 11.1V 12V 12.6V Lithium Battery Protection Board With
Overcharge And Short Circuit Function 10A Current Li
Specification:Material: metalModel: HX-3S-FL10-Aovercharge voltage range: 4.25-4.35v +/- 0.05vSize: 53 * 17 * 4.0mmOver discharge voltage range: 2.3-3.0v +/- 0.05vWorking current: 8-9AOperating temperature: -40 --- +50 CelsiusInstantaneous current: 11-13AStorage conditions: -40-- +80 CelsiusQuiescent current: less than 30uAEffective life: more than 30, 000 hoursInternal resistance: less than 100mOhmShort circuit protection: protection, delay self-recovery.The protective plate size: 53 * 17 * 4.0mmNote:- strictly according to Figure wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B +), do not deliberately short circuit!- after the need to charge the first line, will have output.- 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the
same, please single DU full of batteries and then used in series. Discharge test, the voltage drop Z fast that group of batteries is poor battery.- 3A current discharge products above, the battery discharge rate to 3C or more.Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current.3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current.For some of the poor basis of electronic customers to explain: Do not put a good battery and poor battery mixed with the use of threegroups of battery capacity / resistance closer to the better! (2 good battery +1 a poor battery use effect = 3 poor battery use effect).-In the use o
same, please single DU full of batteries and then used in series. Discharge test, the voltage drop Z fast that group of batteries is poor battery.- 3A current discharge products above, the battery discharge rate to 3C or more.Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A operating current.3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A operating current.For some of the poor basis of electronic customers to explain: Do not put a good battery and poor battery mixed with the use of threegroups of battery capacity / resistance closer to the better! (2 good battery +1 a poor battery use effect = 3 poor battery use effect).-In the use o
