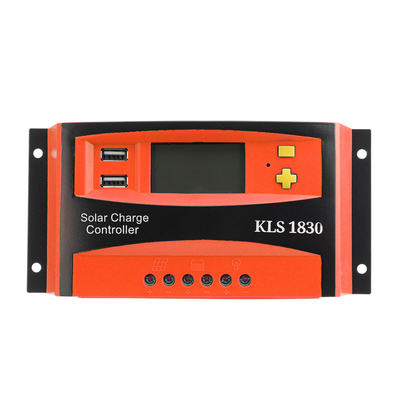

30A 12V/24V PWM Solar Panel Battery Regulator Charge Controller LCD
Dual USB
Specification:Name:30A 12V/24V LCD Display PWM Solar Panel Charge ControllerRated voltage:12/24V AUTOCharge current:30AMax.PV input power:390W(12V), 780W(24V)Max solar input:50V(12V/24V)Equalization:14.6VFloat charge:13.8V (13-15V), 27.6(26-30V)Charging mode:PWMTerminal scale:28-10AWGWaterproof level:IP32USB output:2 way USB output, 5V/2A(Max.)Self-consume:13mAOperationg temperature:-20-55℃Color:White/Orange/BlueSize:185mmx93mmx35mmFeature:Build-in industrial micro controller.Big LCD display, all adjustable parameter.Fully 3-stage PWM charge management.Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.Dual USB output, the maximum current of 2.5A, to support mobile phone charging.Can choose the loading control template, in the evening
time can be set on the street.Accurate temperature compensation, correct charging and discharging voltage, automatically prolong the service life of the battery.Input terminal positive and negative extreme reverse connection protection.System connection:1.Connect he battery to the charge regulator-plus and minus.2.Connect the photovoltaic module to the regulator-plus and minus.3.Connect the consumer to the charge regulator-plus and minus.Package Included:1 X 30A PWM Solar Charge Controller1 X English Manual
time can be set on the street.Accurate temperature compensation, correct charging and discharging voltage, automatically prolong the service life of the battery.Input terminal positive and negative extreme reverse connection protection.System connection:1.Connect he battery to the charge regulator-plus and minus.2.Connect the photovoltaic module to the regulator-plus and minus.3.Connect the consumer to the charge regulator-plus and minus.Package Included:1 X 30A PWM Solar Charge Controller1 X English Manual
