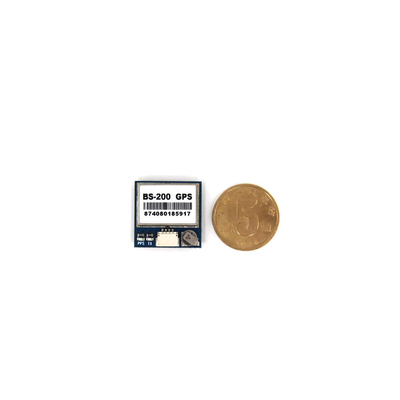

5.2g Beitian BS-200 Micro GPS Antenna Module FLASH TTL Level 9600bps
For RC Drone FPV Racing Multirotors

Product Description

5.2g Beitian BS-200 Micro GPS Antenna Module FLASH TTL Level 9600bps for RC Drone FPV Racing Multirotors BS-200 datasheet, please clickhere. Specification: Item name: Beitian BS-200 micro GPS antenna module Dimensions: 20mm*20mm*6mm Weight: 5.2g Connector: 1.00mm 4pinsconnector Built-in Flash, TLL level, 9600, 1 Hz output, NMEA-0183protocol output Electrical Characteristics Chipset: G7020-KTFrequency: GPS L1, SBAS L1, QZSS L1 Receiving Format: GPS, SBAS, QZSSChannels: 56 Searching Channel Sensitivity Tracking: -162d Bm Reacquisition: -160d Bm Cold Start: -148d Bm Accuracy Position Horizontal: 2.0 m (Typical Open Sky) Velocity: 0.1m/sec 95% (SA off) Timing: 1us synchronized to GPS time Acquisition Time Cold Start: 29s Warm Start: 25s Hot Start: 1s Data Output Support Rate: 4800bpsto 921600bps, Default 9600bps Data Level: Default TTL Level Data Protocol: NMEA-0183or UBX, Default NMEA-0183NMEA Message: RMC, VTG, GGA, GSA, GSV, GLLUpdate Rate: 1 Hz-10 Hz, Default 1 Hz FLASH: 4M FLASH, Store the configuration permanently Operational Limits Altitude: 50, 000m Max Velocity: 515m/s Max Acceleration: Less than 4g Power Consumption VCC: DCVoltage 3.0V-5.5V, Typical:5.0 V Current: Capture 45m A@5.0 V Environment Operating Temp: -40 C ~ +85 C Storage Temp: -40C ~ +105 C Built-in LEDTX LED:blue. The data output, TX LED flashing PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed Package included:1x Beitian BS-200 GPS antenna module
