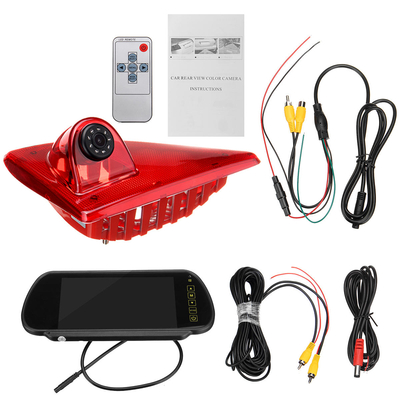

Package included:1x Camera 1x Power cable 1x Video cable 1x 7 inch rearview mirror 1x Rearview mirror cable 1x Remote control 1x Manual Specification: Fitment: For Renault Master 2010+ Product name: Reverse Camera System Weight: 1178g
Material: ABSVoltage of the power:12v Adjustment angel:170 Scanning frequency: 2:1 Power: 6w Video signal: RCA Interface, 1.0 Vp-p, 77ohm Waterproof: IP68 Resolution: 656492 (NTSC) Signal to noise ratio: 48d B (AOC on) Post rate: 30fps Minimum illumination: 0.5 Lux Operating temperature: -20C ~ +80C, RH95% Storage temperature: -40C ~ +100C, Rh 95%
Size: 29.7*21.*18cm/11.7*8.3*7.1inch Feature: Using imported chips, the image color is highly clear & more realistic. Large viewing angle of 170 makes a safer reversing. With reversing reference line (electronic ruler line), the obstacle distance is clear at a glance. Digital sensor chip processing, night vision effect is obvious. Multi-layer waterproof design make truly high pressure washing & soaking waterproof come true. Installed at the rear handle & license plate light, with screw & washer Installation: The video cable is connected to the monitor, the power cable is connected to the taillight power supply of the car, & when the vehicleis reversing, the reversing monitoring system automatically starts working, & the situation behind the car can be clearly seen.
