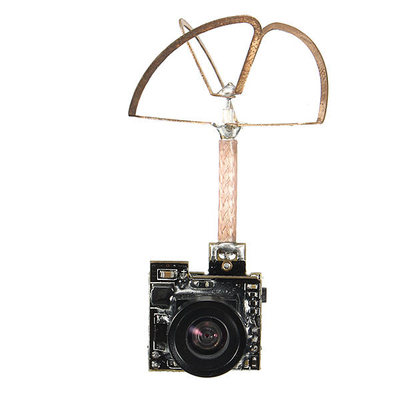

Eachine E010C E010S Spare Parts AIO 5.8G 40CH 25MW VTX 800TVL 1/3 Cmos FPV Camera Specification: Item name Eachine E010C E010S AIO FPV Camera FPV Camera Sensor: 1/3 CMOSLens: M7800TVLLens Angle: 150FOVhorizontal viewing angle of 170DFOVdiagonalperspective Format: NTSC / PAL (switchable) Power consumption: 380m A @ 3.7 V Power: 3.6-5.5 V Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal) Transmitter Support videoformat: NTSC / PALOutput Impedance: 75 Ohm Outputsignalstrength: 23 ~ 24d Bm Output Power: 25m W Wireless Channel: 40CHOperating voltage: 3.6V ~ 5.5 V Current: 100m A Audio carrier: 6.5 M Hz Button function Short press (Apr. 1 sec or less): Change channels 1-8 Long press (More than 1.5 sec): Change bands A-B-E-F-RLong + press (More than 3 sec): Change NTSC/PAL system NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL) Frequency Table Frequency Band A58655845 5825 5805 5785 5765 5745 5725 Frequency Band B57335752577157905809582858475866 Frequency Band E57055685566556455885590559255945 Frequency Band F57405760578058005820584058605880 Frequency Band R56585695573257695806584358805917 Body Weight: 3.8g
Size: 17x 13x 14.5mm (without antenna) Feature:AIO FPV camera, transmitter, atnenna all 3 functions in one limit size & weight 150FOV horizontal viewing angle of 170DFOV diagonal perspective Five bands 40 channels with Raceband Package Included:1 X FPV Camera 1 X Cable
