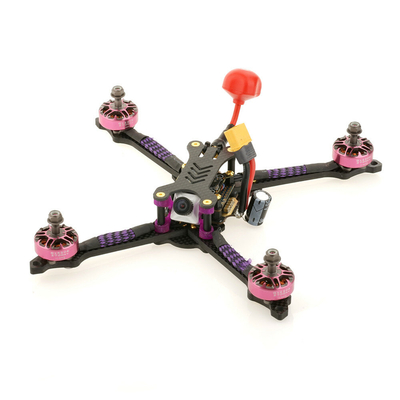

Airbot TD215 215mm RC FPV Racing Drone PNP OMNIBUS F4 V6 TYPHOON 32 V2
35A ESC 600TVL Turbo EOS2 CAM
Airbot TD215 215mm RC FPV Racing Drone PNP OMNIBUS F4 V6 TYPHOON 32 V2 35A ESC 600TVL Turbo EOS2 CAMSpecification:Airbot TD215 frame kit-Wheelbase: 215mm-Fuselage floor: 3MM*1-Arm: 4MM*4-Upper plate: 2MM*1-7075 aluminum column: 25MM*4The Frame is only 70G ultra-light design. The aluminum columnis made of aviation 7075 aluminum super hardness.The fuselagearm adopts a narrow front and wide rear mechanicadesign tomake the steering in flight more precise.AirbotOMNIBUS F4 FC-STM32 F405 MCU, Runs Betaflightfirmware (supported from v3.2)-MPU6000 Over SPI Bus in damping box.-30.5 x 30.5 mm Mounting holes-Supports Lipo direct plugin (3-6S)-Supports 5V 1A BEC output (Buck)-Supports 8V 1A BEC with LC filter output forthe camera andVTX(Buck)-STM32 controls OSD chip over SPI in DMAmode (Betaflight
OSD)-More caps to reduce gyro power noise.STM32 F4The Omnibus F4 V6 flight controller uses the MPU6000 over SPIfor the stable flight performance. Also onboard are a barometer and AB7456 OSD chip for the BetaFlight integrated OSD.Omnibus F4 V6 using same target as Omnibus Fire works supports 3-6s LIPO direct input, has 5x Hardware UARTs.TYPHOON 32 V2 ESC-32bit ESC with BLHELI32 firmware-Supports 3-6S lipo input-4PWM input-Voltage output (VBAT)-NO BEC-Supports oneshot / Multishot / Dshot PWM-Mounting holes 30.5x30.5mm-Supports damped light-More caps to reduce power noiseMrs. Copper 2306 Motor-KV: 2700-Configu-ration:12N14P-Stator Diamter:23mm-Stator Length:6mm-Shaft Diameter:4mm(Hollo
OSD)-More caps to reduce gyro power noise.STM32 F4The Omnibus F4 V6 flight controller uses the MPU6000 over SPIfor the stable flight performance. Also onboard are a barometer and AB7456 OSD chip for the BetaFlight integrated OSD.Omnibus F4 V6 using same target as Omnibus Fire works supports 3-6s LIPO direct input, has 5x Hardware UARTs.TYPHOON 32 V2 ESC-32bit ESC with BLHELI32 firmware-Supports 3-6S lipo input-4PWM input-Voltage output (VBAT)-NO BEC-Supports oneshot / Multishot / Dshot PWM-Mounting holes 30.5x30.5mm-Supports damped light-More caps to reduce power noiseMrs. Copper 2306 Motor-KV: 2700-Configu-ration:12N14P-Stator Diamter:23mm-Stator Length:6mm-Shaft Diameter:4mm(Hollo
