FX3 is similar to the FX2 but has a smaller profile that uses 20x 20mm mounting pattern, in the cost of lower max output power, to be designed for smaller micro builds. Specification: Input voltage: 7-24 V Extra feature: Smart Audio/PIT Mode Power supply: 5v camera@under 0.3A max Output power: 25m W:100m A/200m W:200m A/400m W:250m A/600m W:320m A@12v Range: Up to 2km with omnidirectional RHCP antenna Antenna connector: MMCXPort connector: JST, 6pin Dimensions: 26 (W)x 26 (D)mm, 20x 20mm (hole) Weight: 4.6g (excluding antenna)
Features: Support Pit Mode 25m W/200m W/400m W/600m W switchable One button frequency & power setup OSD configuration using smart audio 7-24v input with 5v output Package included:1 x AKK FX3 5.8 Ghz 37CH 25/200/400/600m W Switchable FPV Transmitter VTX with MMCX Integrated OSD FC1 x Cable 1 x MMCX pigtail
...

Specification: Input voltage: 7-24 V Extra feature: Smart Audio/MMCX+UFL connector, MICPower supply: 5v camera@under 0.3A max Output power: 25m W:100m A/200m W:200m A/400m W:250m A/600m W:320m A@12v Range: Up to 2km with omnidirectional RHCP antenna Antenna connector: MMCX/UFLPort connector: Solder Pads Dimensions: 26 (W)x 26 (D)mm, 20x 20mm (hole) Weight: 5.4g (excluding antenna)
Features: Support Pit Mode 25m W, 200m W, 400m W & 600m W power switchable One button frequency & power setup OSD configuration using Smart audio 7-24V input with 5V output MMCX+UFL connector MICPackage included:1 x AKK FX3-ultimat 5.8G 40CH 25/200/400/600m W Switchable FPV Transmitter 1 x Cable 1 x MMCX pigtail
...

Specification: Input voltage: 5v Video format: NTSC/PALPower supply: 5v to camera@under 300m A Output power: 25m W:260m A/100m W:380m A/200m W:480m A Antenna connector: IPEXPort connector: 6pin Dimensions: 20 (W)x 20 (D)mm, 16x 16mm (hole) Weight: 2g (excluding antenna) Functions:-AKK FX5 has 3 LED, LED 1 for CH, LED 2 for B&, LED 3 for POWER. The VTX has built-in OSD, it can display parameters on 5.8 G Hz goggles or monitors-B2 stands for BAND B, Channel 25752 stands for frequency 5752500 stands for power 500m W10.42V stands for input voltage 10.42V00:00:33 stands for power-on time 33seconds
Features:25m W, 100m W & 200m W power switchable One button frequency & power setup Built in OSDSuper light weight Package included:1 x AKK FX5 5.8 Ghz 40CH 25/100/200m W Switchable FPV Transmitter Built-in OSD for RC Drone
...

AKK Infinite DVR VTX 25/200/600/1000m W Power Switchable FPV Transmitter Support Smart Audio Description: Brand name: AKKItem name: Infinite DVR VTXInput voltage: 7V to 26 V Extra

Features: Smart audio DVRPower supply: 5V output for camera Output power: 25/200/600m W/1000m W Antenna connector: MMCXCable connector: Solder pads Records Video

Size: VGA (640*480) Max Support TF Card: 32 G Dimension: 36x 36mm, 30.5 stackable hole Weight: 8.8g (excluding antenna)
Features:* Support Smart audio* 25/200/600/1000m W power switchable* One button frequency & power setup* OSD configuration using smart audio* 7-26V input with 5V output for camera* With MICNotice: 5645/5925/5945 (E4/E7/E8) are not available due to FCC regulation. Selecting 5645/5925/5945 (E4/E7/E8) will be invalid action. Note:37 channels are all above 5650 & below 5925 M Hz, which are legal to use in the USA with an amateur radio license. This equipment is being sold under FCCs amateur radio rules. Operators must require amateur radio license to operator legally inthe US. Use of amateur equipment without a license or use ofequipment on restricted frequencies could subject the operator tosignificant fines by the FCC. By purchasing this equipment, the user isagreeing that they understand these responsibilities & will operatethe equipment legally. More information related to ARL, please go tohttp://www.arrl.org/getting-licensed. Pacakge Included:1x VTX1x pigtail 1x cable




...

Specification: Image Sensor: 1/3 CMOSResolution: 1.3 megapixel 1288h X 968v @60fps Lens: 1.6mm FOV160 Signal System: PAL / NTSC selectable by OSD keyboard Integrated OSD: Yes S/N Ratio: 38d B Day/ Night: Color/BWPower: DC 4.2-5 V Current: DC 5V 120m A Net Weight: 2.5g Transmission Mode: CVBSDimensions: 19mm*19mm
Features:OSD menu setting for exposure/whiteblack/daynight mode/video setting/language To confirm setting, please select save-exit, otherwise, setting will not be saved. After reset, all setting returnto factory default except language. Package
Includes:: Camera x 1OSD keyboard x 1 Screw bag x 1 User manual x 1

...

AKK NO.1 PDB Power Distribution Board With ESC Output 5V12V BEC for FPV Racing RC Drone This PDB distributes power from a battery pack to 4 ESCs, as well as providing synchronisedregulated DC outputs for powering cameras, servos, VTX, LEDs, etc. Batteries may range from 3S to 6S Li Po. It also features convenient solder bridge of various voltage for camera VTX. Description: Brand name: AKKModel: No.1 Item name:PDB Power Distribution Board Input voltage range (3S-6S operation): 9-26VDCRegulated 5V & 12V outputs LED power indicators (5V12V outputs)4 ESC outputs Dimension: 36 x 36mm Weight: 6g Mounting holes: 30.5mm ESC outputs:* Continuous current: 20A per output* Peak current (10 seconds/minute): 25A per output BEC 5V output:* Designed for RC Receivers, Flight controllers, OSD, & Servos.* DC/DC synchronous buck regulator, high efficiency.* Voltage: 5.0 +/- 0.2VDC* Continuous current: 3 Amps* Short-circuit tolerant (10 seconds/minute)* LED (indicates voltage is in regulation)BEC 12V output:* The battery should be 4S-6S Lipo* Standard output designed to power cameras & VTX, etc.* Voltage: 12.0 +/- 0.2VDC* Continuous current: 2 Amps (Max. 3A 10s/minute)* Short-circuit tolerant (10 seconds/minute)* LED (indicates voltage is in regulation)CAMVTX voltage bridge:* 3S operation. choose VCC for 12V camera 12V VTX, VCC= Battery Voltage.* 4~6S operation, choose 12 for 12V camera 12V VTX.* 3~6S operation, choose 5 for 5V camera.* Video pass through from the CAM pad to VTX pad.
Features:*
...

Specification: Brand name: AKKItem name: Race Ranger Input voltage: 7V to 28 V Extra

Features: Smart audio

...

AKK Race VTX 25m W/200m W Switched 5.8 Ghz 40CH Smart Audio FPV Transmitter Raceband Support Pit Mode For RC Racing Drone Key Features Support Pit Mode 25m W & 200m W switchable Slow Power On OSD configuration via smart audio 5V to camera @ under 300m ASMA Connector Package Included 1 x AKK Race VTX1 x Antenna Cable SMA ...

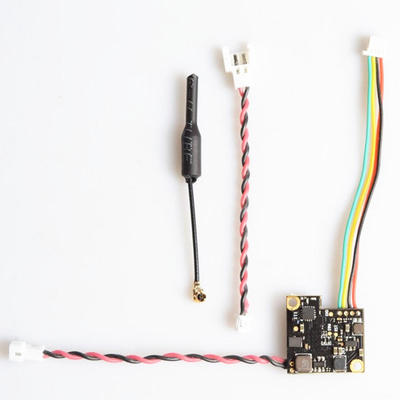

Oscars Backpack VTX Support Smart Audio, the hole position of OBVTX compatible with Run Cam Micro Swift 3, Run Cam Micro Swift 2 & Run Cam Micro Eagle, & Foxeer cameras. Specification: Input voltage: 5 V Extra feature: Smart Audio/MICPower supply: 5v camera@under 0.3A max Output power: 25m W/200m W switchable Antenna connector: MMCXCable connector: solder pads Dimension (with mounting hole): 19*19mm Weight: 2.8g (excluding antenna)
Features: Support Pit Mode 25m W & 200m W switchable One button frequency & power setup OSD configuration using smart audio 5V to camera @ under 300m A Package included:1 x AKK Smart Audio Stackable Backpack FPV Transmitter VTX for Runcam Micro & Foxeer Micro with MIC1 x MMCX to SMA pigtail
...
