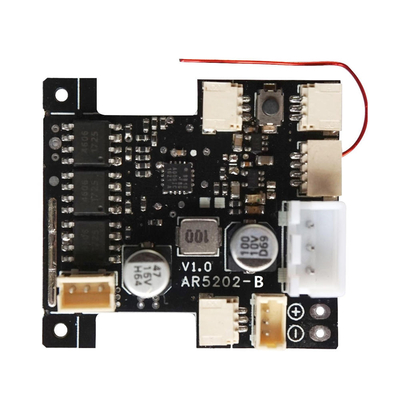

AR5202-X Integrated Multifunction 4A Brushless ESC Mini Receiver SR3X
For DSMX DMS2 FUTABA SFHSS Frsky D8

Product Description

AR5202-X Integrated Multifunction Compatible Mini Receiver for Frsky DSMX DMS2 FUTABA SFHSS Fr Sky D8AR5202-X is a kind of highly integrated receiver, it is integrated 4A brushless ESC, a compatible receiver, SR3X 3-axis, DCDC-5V/2A power, it is very helpful for DIY or rebuilding model airplanes weight between 60-160g. Description: Item number:AR5202-XItem name: Integrated Multifunction Compatible Receiver Working voltage: 7.4V-11.2 V Weight:4.2g;
Size: 32.8*30*8.5mm Mode: DSMX/DSM2, Futaba SFHSS, Frsky D8
Features:* Integrated 4A brushless ESC (Max current 6A/5S).* Integrated SR3X 3-axis (can be shut off, sensitive adjustable).* Integrated compatible receiver (A1:DSMX/2; B1:SFHSS; B2: FRSKY-D8).* Integrated DCDC-5V/2A power.* Supports online updating. Hardware: Version A is DSMX/2 compatible; Version B is SFHSS or FRSKY-D8 compatible, besides, LNA & PA were added onto RF hardware to achieve longer working range & improvement of data returning. Version C is Fly Sky AFHDS or AFHDS-2A compatible. The integrated DCDC-5V/2A power can connect analog video transmitter & camera for power supply, in this way, you can change the traditional model plane to FPV model plane easily. Binding operation: Press the binding button when AR5202-X is powered, after 2 seconds, the slow flashing red LED turns to fast flashing, it indicates binding mode is entered, customer can bind the receiver according to your transmitter manual, the red LED will turn to solid bright once the binding is succeed. Function
