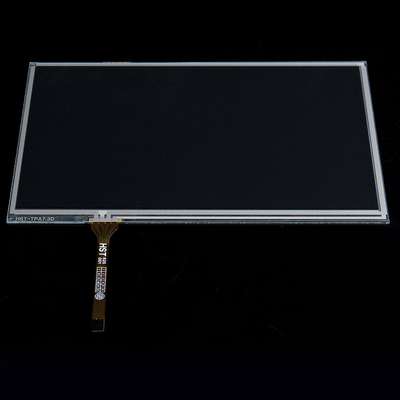

Car Resistive GPS Navigation Touch Screen Glass Digitizer For Lexus IS
GS RX Toyota Prius MDF
Specification:Type: Resistive Touch ScreenColor: TransparentMaterial: GlassReplacement part number: LTA070B510F, LTA070B512F, LTA070B511F, LTA070B513FSize: 7.3 inchFitment:For Lexus IS250, IS300, IS350, IS-F 2006-2009For Lexus GS300, GS350, GS430, GS450h 1999-2009For Lexus RX300, RX330, RX350, RX400h 2004-2009For Toyota Prius 2004-2009And some other models that use the 4-pin/wire touchscreen.Features:For GPS Navigation Touch Screen Digitizer.Size: 7.3in (170*107.6mm).View area: 161.9*96.1mm.Active area: 159.9*94.1mm.Thickness: 1.40.15mm.Distance from the left edge of the glass to the center of FPC: 43.9mm.Length of FPC (flexible print circuit): 60.5mm.Working voltage: 5V.Circuit class: DC 5V, 1mA.Interface: 4-pin.Insulation resistance: 20 M (25V DC).Linear: 1.5%.Light
transmittance: 80%.Operating pressure: 10-100g.Service life time: 1, 000, 000 times.Working temperature: -10 C ~ +60 C, 90%RH.Storage temperature: -20 C ~ +70 C, 90%RH.Special feature: Support Can-Bus.Package included:1 x Resistive Touch ScreenAttention:Installation instructions not included. Tool not included.It is only a touch panel, not including a LCD display.Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.
transmittance: 80%.Operating pressure: 10-100g.Service life time: 1, 000, 000 times.Working temperature: -10 C ~ +60 C, 90%RH.Storage temperature: -20 C ~ +70 C, 90%RH.Special feature: Support Can-Bus.Package included:1 x Resistive Touch ScreenAttention:Installation instructions not included. Tool not included.It is only a touch panel, not including a LCD display.Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.
