Specifications: Item Fishing Lure Type Artificial Hard Bait Lure Length 4.5cm Lure Weight 4g Hooks Dual 10 Hooks Eyes 3DFish Eyes Material ABSPosition Ocean Boat Fishing, Ocean Rock Fshing, Ocean Beach Fishing, Lake, Reservoir Pond, Stream Feature: Bright colors and 3D eyes make it a powerful catching tool. High carbon steel treble hooks, sharp & strong enough to catch big fish. High resolution body detail, greatly enhancing the allure of fish. Life-like swimming actions in water to attract target to bite. Package Included:5 Pcs/ Set x Fishing Lures ...

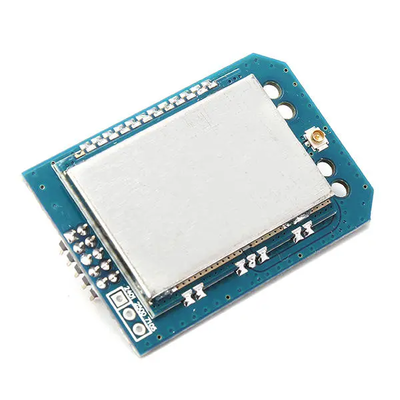

Because of the excellent work of Deviation forum, Devo series radios (DEVO7, DEVO7E, DEVO10, DEVO8S, DEVO12S) can support many different protocols now, some of the protocols need additional 2.4 G Hz transceiver module (s). & the 3 IN 1 module is meet for this. It integrates three RF chips (CC2500, NRF24L01, A7105) in one single PCB board. It supports more than 10 different protocols, such as Frsky, Flysky, WLtoys, Hubsan, Hisky & so on. Pinassignment: Pinfunction: Number Name Property Description 1VCCpower 3.3 V Powersupply 2GNDpower Ground 3PAENinput PAEnable, withinternalpull-ups, notconnect 4LANENinput LNAEnable, withinternalpull-ups, notconnect 5MOSIinput SPIinputforslavedevice 6MISOoutput SPIoutputforslavedevice 7CE_NRFinput NRF24L01chipenable, withinternalpull-ups, notconnect 8SCKinput SPIclocksignal 9CS_2500input CC2500chipselect 10CS_2401input NRF24L01chipselect 11GNDpowerground 12CS_7105input A7105chipselect Installation: You can use 30 AWG wires to connect the module & the Devo Transmitter, the pattern is as follows. after that, Fix the antenna to the top of the Transmitter, next to the original one. For Devo 7e, you should connect a wire to the MCU, you can use heat tape to cover unwanted MCU pins & expose the useful one, the next soldering work will be much easier. Connection:RFModule DEVO10DEVO7ESCK22MOSI43MISO54CS_25001310CS_24011613CS_7105129VCC1512GND3or 8or 147or 11 Youcandefinetheconnectionsof C Spinsbyyourself, andyoushouldmodifytheinifileatthesametime (seebelow) Devo 10connections: In addition to the ...
CC2500 PA LNA Remote Wireless Module CC2500/SI4432 For RC Transmitter Description: Working Voltage:1.8to 3.6 V Frequency:2.4 to 2.483 G Hz Working Temperauture: - 40℃~ +85℃ Send Power:+17d Bm-20d Bm Current :150m A Receive :-112d Bm Rate:1200 to 500 Kbps. Working Distance: Over 800m at open area. Features: Low current consumption Easy use Efficient SPI interface High sensitivity, the output power can be programmed Package Included:1 x Module ...
Only US$6.34, buy best cc 37-ipa 3 5.0v/4600ma white dual USB (Universal Serial Bus) car charger for mobile phone sale online store at wholesale price. ...
Only US$24.99, buy best cc 2500 nrf 24l 01 a 7105 cyrf 6936 4 in 1 rf module for walkera devo transmitter sale online store at wholesale price.
