CYS-S0060 6KG DC6.0-7.4V Analog Micro Servo Metal Gear JR/Futaba Plug For RC Airplane 40.8x20.1x38mm
CYS-S0060 6KG
DC6.0-7.4V Analog
Micro Servo Metal
Gear JR/ Futaba Plug
For RC
Airplane 40.8x 20.1x 38mm
£10.79
CYS-S0060 6KG DC6.0-7.4V Analog Micro Servo Metal Gear JR/ Futaba Plug For RC Airplane 40.8x 20.1x 38mm Specification: Dimensions :40.8x 20.1x 38mm Operating Voltage: DC6.0-7.4 V Operating Speed (6.0V): 0.14sec/60 Operating Speed (7.4V): 0.12sec/60 degrees Stall Torque (7.4V): 6.5kg.cm Stall Torque (6.0V): 6kg.cm Weight: 52 g Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 *CYS-S0060 6KG Analog Servo 1 * Spare Parts Set ...
Available
CYS-S0090D 9KG Large Torque Metal Gear Digital Servo for RC Models
CYS-S0090D 9KG Large
Torque Metal Gear
Digital Servo For RC
Models
£12.89
CYS-S0090D 9KG Large Torque Metal Gear Digital Servo for RC Models Specification: Item No. CYS-S0090 D Type Digital Weight 56g Size 40.8*20.1*38mm Control System (+) Pulse Width Control 1500usec Neutral Required Pulse Operating Voltage 6.0~7.4 Volts Operating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.14sec/60 at no load Operating Speed (7.4V) 0.12sec/60 at no load Stall Torque (6.0V) 9kg.cm Stall Torque (7.4V) 10kg.cm Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/ Pulse Traveling 1000~2000usec Current Drain (6.0V) 20m A/idle & 200m A no load operating Current Drain (7.4V) 20m A/idle & 300m A no load operating Stall Current 2.3A/2.5 A Dead Band Width 3usec Motor Type 3 Pole Ferrite Drive Bearing Type Dual Ball Bearing Horn gear spline 25 T Gear Type Metal Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 *CYS-S0090D 9KG Digital Servo 1 * Spare Parts Set ...
Available
CYS-S0150D 15KG Metal Gear Digital Servo for RC Buggy Car Truck Truggy parts
CYS-S0150D 15KG Metal
Gear Digital Servo For
RC Buggy Car Truck
Truggy Parts
£15.12
CYS-S0150D 15KG Metal Gear Digital Servo for RC Buggy Car Truck Truggy parts Specification: Item No. CYS-S0150 D Type Analog Weight 56g Size 40.1*20.1*38.8mm Control System (+) Pulse Width Control 1500usec Neutral Required Pulse Operating Voltage 6.0~7.4 Volts Operating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.16sec/60 at no load Operating Speed (7.4V) 1.4sec/60 at no load Stall Torque (6.0V) 14kg.cm Stall Torque (7.4V) 15kg.cm Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/ Pulse Traveling 1000~2000usec Current Drain (6.0V) 20m A/idle & 200m A no load operating Current Drain (7.4V) 20m A/idle & 300m A no load operating Stall Current 2.7A/3.2 A Dead Band Width 4usec Motor Type 3 Pole Ferrite Drive Bearing Type Dual Ball Bearing Horn gear spline 25 T Gear Type Metal Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 *CYS-S0150D 15KG Digital Servo 1 * Spare Parts Set ...
Available
CYS-S0650 55KG Servo Metal Gear Digital Servo Waterproof High Torque Steering Gear for 1:5 RC Car
CYS-S0650 55KG Servo
Metal Gear Digital
Servo Waterproof High
Torque Steering Gear
For 1:5 RC Car
£29.99
Only US$29.99, buy best cys-s 0650 55kg servo metal gear digital servo waterproof high torque steering gear for 1:5 rc car sale online store at wholesale price. ...
Available
CYS-S2213 13KG Digital Servo Large Torque Digital Standard Servo For RC Model
CYS-S2213 13KG Digital
Servo Large Torque
Digital Standard Servo
For RC Model
£31.19
CYS-S2213 13KG Digital Servo Large Torque Digital Standard Servo For RC Model Description: Item No. CYS-S2213 Type Digital Weight 64g Size 40.1*20.1*38.8mm Control System (+) Pulse Width Control 1500usec Neutral Required Pulse Operating Voltage 6.0~7.4 Volts Operating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.14sec/60 at no load Operating Speed (7.4V) 0.12sec/60 at no load Stall Torque (6.0V) 12kg.cm Stall Torque (7.4V) 13kg.cm Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/ Pulse Traveling 1000~2000usec Current Drain (6.0V) 20m A/idle & 100m A no load operating Current Drain (7.4V) 20m A/idle & 150m A no load operating Stall Current 2.3A/2.5 A Dead Band Width 2usec Motor Type Coreless motor Bearing Type Dual Ball Bearing Horn gear spline 25 T Gear Type Titanium Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 x CYS-S2213 13KG Digital Servo ...
Available
CYS-S3003 3KG Tiny AnalogServo for RC Car Buggy Truck Boat Airplane Helicopter RC Toys Part
CYS-S3003 3KG Tiny
Analog Servo For RC Car
Buggy Truck
Boat Airplane
Helicopter RC
Toys Part
£7.78
CYS-S3003 3KG Tiny Analog Servo for RC Car Buggy Truck Boat Airplane Helicopter RC Toys Part CYS-S3003 Tiny Analog Steering Servo is designed & manufactured for RC Car Boat Airplane. Small size & light weight is conducive to the driving of RC models. If you want to get a better RC playing experience, CYS-S3003servo is a good choice!
Features: Wide operating voltage-6V to 7.4 V Small size & light weight, convenient to carry Perfectly tailored to RC Car, RC Boat, RC Airplane High sensitivity & responsiveness, flexible operation Smooth movement, high efficiency & exquisite workmanship Specifications: Model: CYS-S3003 Item Name: CYS-S3003 Servo Dead band: 4sec Operating Voltage:6.0~7.4 Volts Operating Speed (6.0V):0.12sec/60 at no load Operating Speed (7.4V):0.10sec/60 at no load Stall Torque (6.0V):3kg.cm Stall Torque (7.4V):3.5kg.cm Current Drain (6.0V): 20m A/idle & 160m A no load operating Current Drain (7.4V): 20m A/idle & 200m A no load operating Stall Current (6V): 800m A Stall Current (7.4V): 900m A Horn Gear Spline: 25 T Bearing Type: Dual Ball Bearing Motor Type: 3 Pole Ferrite Drive Gear Type: Plastic
Size: 40.8 * 20.1 * 38mm Weight: 36g Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 * CYS-S3003

...
Available
CYS-S3006 6KG High Torque Analog Plastic Gear Servo For RCAirplane Helicopter RC Toys Parts
CYS-S3006 6KG High
Torque Analog Plastic
Gear Servo
For RCAirplane
Helicopter RC
Toys Parts
£7.99
CYS-S3006 6KG High Torque Analog Plastic Gear Servo For RC Airplane Helicopter RC Toys Parts CYS-S3006 6kg Analog Servo is designed & manufactured for RC Car Boat Airplane. Small size & light weight is conducive to the driving of RC models. & its high strength design increase its durability. If you want to get a better RC playing experience, CYS-S3006 servo is a good choice!
Features: Small size light weight & less noise Large stall torque of 6kg / cm (7.2V) Wide operating voltage-4.8V to 6 V Perfectly tailored to RC Car, RC Boat, RC Airplane Smooth movement, powerful torque & exquisite workmanship Specifications: Model: CYS-S3006 Name: CYS-S3006 6kg Analog Servo Operating voltage: 4.8-6 V Operating Speed (5.0V): 0.18sec / 60 Operating Speed (7.2V): 0.16sec / 60 Stall Torque (5.0V): 5kg / cm Stall Torque (7.2V): 6kg / cm Connector wire: About 300mm Weight: 50g Dimension: 41 * 20 * 38mm Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 * CYS-S3006 Servo 1 * Spare Parts Set
...
Available
CYS-S3105 9g Servo Metal Gear Digital Servo Waterproof High Torque Steering Gear for 450 Helicopter
CYS-S3105 9g Servo
Metal Gear Digital
Servo Waterproof
High Torque Steering
Gear For
450 Helicopter
£45.99
Only US$45.99, buy best cys-s 3105 9g servo metal gear digital servo waterproof high torque steering gear for 450 helicopter sale online store at wholesale price. ...
Available
CYS-S3120 4.5kg Torque Digital Servo for 450 Helicopter Fixed Wing Model Car
CYS-S3120 4.5kg Torque
Digital Servo For 450
Helicopter Fixed Wing
Model Car
£24.99
Only US$24.99, buy best cys-s 3120 4.5kg torque digital servo for 450 helicopter fixed wing model car sale online store at wholesale price. ...
Available
CYS-S6108 1.8kg 10g Micro Coreless Digital Servo 90° Metal Gear For DLG/F3K PowerGlider_
CYS-S6108 1.8kg 10g
Micro Coreless Digital
Servo 90° Metal Gear
For
DLG/F3K Power Glider_
£39.99
Description: Brand:CYSItem: S6108 Product: Coreless Digital Servo Operating Voltage: 4.8-6.0 V Stall Torque: 1.5kg/cm (4.8V ), 1.8kg/cm (6.0V) Operating Speed: 0.09sec/60degree (4.8V), 0.08sec/60degree (6.0V) Stall Current: 1.0A/1.2 A No-load Current: 3m A/80m A (4.8V), 3m A/80m A (6.0V) Control Signal: PWMNeutral Zone: 1500usec Reverse: 1000-2000usec Dead Band: 2usec Motor Type: Coreless Gear: 15T Metal Gear Bearing: Single Bearing Max Travel: 90 (each side 45) Wire Length: 140mm 5 Weight: 10g 1g Dimension: 29.5*22.8*8mm Application: For DLG/F3K Power Glider-Package Included:1* CYS-S6108 Coreless Digital Servo ...
Available

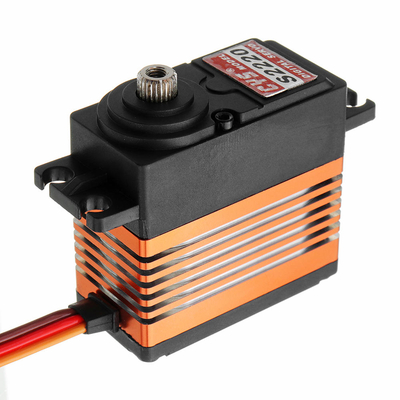

CYS-S2220 20KG High Torque Digital Standard Servo High Speed For RC
Model

CYS-S2220 20KG High Torque Digital Standard Servo High Speed For RC ModelDescription:Item No. CYS-S2220Type DigitalWeight 64gSize 40.1*20.1*38.8mmControl System (+)Pulse Width Control 1500usec NeutralOperating Voltage 6.0~7.4VoltsOperating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.16sec/60 at no loadOperating Speed (7.4V) 0.14sec/60 at no loadStall Torque (6.0V) 16kg.cmStall Torque (7.4V) 18kg.cmOperating Angle 45deg.one side pulse traveling 500 usec360 Modifiable NoDirection Anticlockwise/Pulse Traveling 1000~2000usecCurrent Drain (6.0V) 20mA/idle and 100mA no load operatingCurrent Drain (7.4V) 20mA/idle and 150mA no load operatingStall Current 2.5A/2.8ADead Band Width 2usecMotor Type Coreless motorBearing Type Dual Ball BearingHorn gear spline 25TGear Type
TitaniumImportant Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes and boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean and away from dust, corrosive gas and humid air.Package Included:1 xCYS-S2220 20KG Digital Servo
Buy
Availability: In Stock
£32.43
toys & games
Description Reviews / Comments Add New

Product Description

CYS-S2220 20KG High Torque Digital Standard Servo High Speed For RC Model Description: Item No. CYS-S2220 Type Digital Weight 64g Size 40.1*20.1*38.8mm Control System (+) Pulse Width Control 1500usec Neutral Operating Voltage 6.0~7.4 Volts Operating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.16sec/60 at no load Operating Speed (7.4V) 0.14sec/60 at no load Stall Torque (6.0V) 16kg.cm Stall Torque (7.4V) 18kg.cm Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/ Pulse Traveling 1000~2000usec Current Drain (6.0V) 20m A/idle & 100m A no load operating Current Drain (7.4V) 20m A/idle & 150m A no load operating Stall Current 2.5A/2.8 A Dead Band Width 2usec Motor Type Coreless motor Bearing Type Dual Ball Bearing Horn gear spline 25 T Gear Type Titanium Important Notes:-Refer to the figure when installing the servo accessories.-For engine powered airplanes & boats, rubber must be used to reduce vibration.- Please choose correct model for your application.-Torque over-loaded will damage the servos mechanism-.- Keep the servo clean & away from dust, corrosive gas & humid air. Package Included:1 x CYS-S2220 20KG Digital Servo
