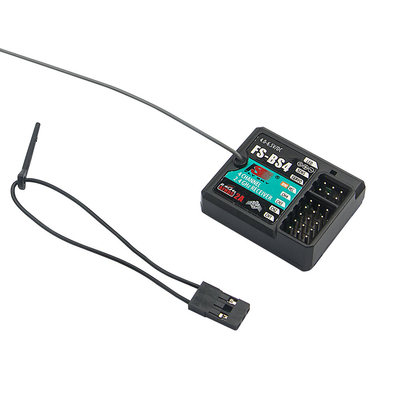

FlySky FS-BS4 2.4GHz 4CH ASHDS 2A RC Receiver PWM/PPM/I.bus/S.bus
Output With Gyroscope Function For RC Car Boat

Product Description

Fly Sky FS-BS4 2.4 G Hz 4CH ASHDS 2A RC Receiver PWM/PPM/I.bus/S.bus Output with Gyroscope Function for RC Car Boat OVERVIEW: Fly Sky FS-BS4, a gyro-embeded receiver, has 4 channels. In addition to the regular functions, it can also be used with a transmitter with S.V.C. (Smart Vehicle Control) function to realize a smart control over the car & make sure the car travels in the expected direction even on bumpy/slippery surfaces, or during cornering. Specification: Brand Name: Fly Sky Item Name: FS-BS4 Receiver Dimensions: 35.4 * 29.6 * 13mm Weight: 20g PWM channels: 4CHWireless frequency: 2.4 G Hz Wireless protocol: AFHDS 2 A Range: 100
- 300m (ground) Antenna type: single antenna (150mm) Power: 4.0-6.5VRSSI: Supported Data port: PWM / PPM / i.bus / s.bus Temperature range: -10 ℃+ 60 ℃ Humidity range: 20% -95% Online Update: Yes Certification: CEBinding:1. Turn on the transmitter, check the RF standard & if necessary, change it to [AFDHS 2A 2-way]. For detailed instructions, refer to the transmitters manual.2. Set the transmitter to bind mode. For detailed instructions, refer to the transmitters manual.3. Make sure the receiver is powered off.4. Connect the bind cable to the BIND/VCC port on the receiver. Then connect the power to any other ports on the receiver. The red indicator starts to flash rapidly, indicating that the receiver is in bind mode.5. Wait till the indicator stops flashing, which means binding is finished.6. Disconnect the bind cable & power from the receiver. Then connect th
