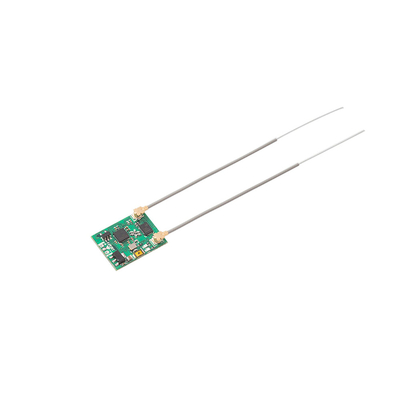

Jumper R1F 16CH Full Range RSSI F.port Mini RC Receiver Compatible Fr Sky D16 for RC Drone Specification Item Name: R1F Receiver
Size: 20*15*4mm (without antenna) Weight: 2g Number of channels: 16ch RSSI (Signal Strength Indication) output: 0-3.3v Data return: F.port Operating voltage range: 4.0~6 V Operating current range: 80m A@5 V Effective distance: full distance (1.5km)compatibility: Fr Sky D16 Mode Transmitter Binding method: Press & hold the receiver's bind button, turn on the power, the receiver will now enter binding mode. The red light is always on & the green light is flashing slowly. Turn on the remote control & begin the bind procedure according to your radio. After the bind is successful the red light is off & the green light is always on. Note: When the receiver loses the signal, the green light is off & thered light is flashing slowly. Package Included:1 x R1F Receiver
