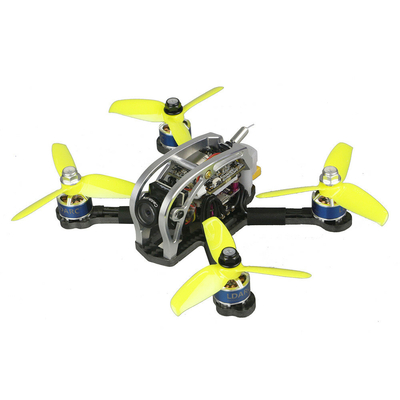

LDARC 130GTI-FPV 133mm F4 OSD 3-4S FPV Racing Drone PNP BNF w/ 1200TVL 1/3 CMOS Camera Specification: Brand Name: LDARCModel:130GTI-FPVItem Name:133mm F4 OSD 3-4S FPV Racing Drone Wheelbase: 133mm Bottom Plate Thickness: 4mm Version:PNP (Without Receiver) / BNF (With AC2000 Receiver Compatible S-FHSSD16 Non EUD16 EU-LBT ) Net Weight: 128.4g (Not Included battery Prop Receiver Bumper)LDARC F4 OSD Flight Controller Brand Name: LDARCItem Name: F4 OSD Flight Controller Mounting Hole: 20x 20mm
Size: 25x 25mm Net Weight: 4g Firmware: Matek F411- Support SBUS, PPM, DSMX, Ibus Receiver- Integraded with Betaflight OSD- With 5V port for camera- Support Voltage monitor, buzzer & LEDLDARC 20A BLheli_S 4 In 1 ESCBrand Name: LDARCItem Name: 20ABLheli_S 4 In 1 ESCCon. Current: 20 A Peak Current: 25 A Input Voltage: 2-4S Supported Firmware: BLheli_S (G_H_30 ) Mounting Hole: 20x 20mm
Size: 28x 31mm Net Weight: 5g LDARC5.8G 48CH 0/25/100/200m W FPV Transmitter Brand Name: LDARCItem Name: 5.8G 40CH 0/25/100/200m W Switchable FPV Transmitter Input Voltage: 2-6S Lipo Supported Output to camera voltage: 5 V Channel: 48CHPower: Off / 25m W / 100m W / 200m W Mounting Hole: 20x 20mm
Size: 25x 25mm Net Weight: 2.0g How to use VTX: Blue Light points at the CH indicator (CH1-CH8, flashes 1-8 times) Green Light points at the Band Indicator (Band A- Band F, flashes 1-6 times) Red Light points at the Power Indicator (25-100m W, flashed 1-3 times)LDARC XT1406 3600KV Brushless Motor Brand Name: LDARCModel: XT1406 Item Name: 1406 3600KV 2-4S Moto
