User Manual:DJ220 PNP User manual Rmark:DJ220 DJI FPV digital must be use with DJI sepecial TX & glasses, if be use with other type TX. It needs to beconnected to a another matching receiver else. Description: Wheelbase:219mm Drone weight:369.1g (DJ220-Digital)316.7g (DJ220) Package
Size: 275*205*90mm Package weight:842g (DJ220-Digital)765g (DJ220) Plate thicknss:top plate 2.5mm; bottom plate 2.5mm.arm frame 5mm; bottom plate 3mm. Camera angle:15-50 Mounting

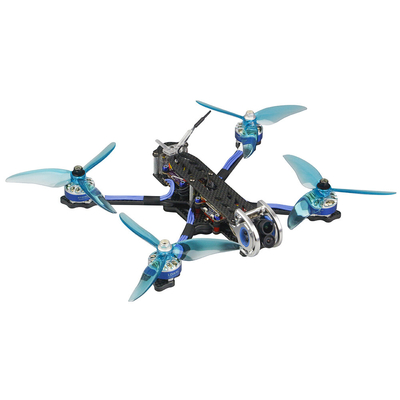

Size: Flytower 30.5*30.5mm, motor Φ16 M3*8 ; camera 19mm/20mm KK tower new name KKT16 mounting size 16*16mm KKT20 mounting size 20*20mm KKT30 mounting size 30.5*30.5mm Configuration:FC: KKT30-F4D (Old name: F4+VTX)ESC: KKT30-E40A Old name:ESC 40A (KK supper part)DJ220-Digital: DJI FPV Digital+ Camera DJ220: NO CAM+VTXMotor: XT2306-2500KVProp: 51499-3blade Recommend battery: 14.8V 1300-1800m Ah Receiver: DJ220-Digital (Include DJI RX, it canable to use DJI transmitter), FC can use AC2000, XM+ etc. receiver, it can use Frsky, Futaba transmitter Package Included:1*LDARC DJ220 /DJ220-Digital PNP FPV Drone
