Specification: Voltage: DC12-24 V Output wattage: 12V144W, 24V288 W Static wattage: 1 W Output channel: 3CHOutput currency: 4A (each channel) Connection mode: common anode Working temperature: -20-60℃

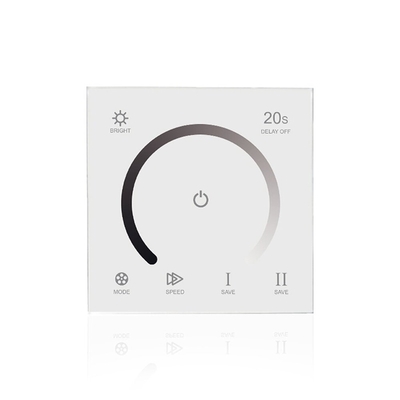

Size: L86*W86*H36mm Feature:9 color changing mode Night light guidance function Brightness dimming: 0.1%-100% Timed controlling: can be delayed turn off after 20 seconds Widely used on the controlling of single color LED strips, panel lights, etc. Package included:1*single color dimmer controller
