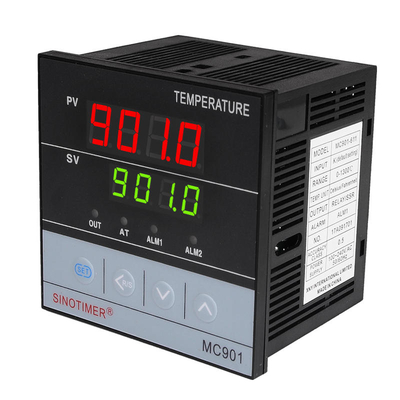

MC901 96x96mm Universal Input Digital PID Temperature Controller
Regulator SSR Relay Output For Heating Or Cooling With

Product Description

Description :MC90196x 96mm Universal Input Digital PID Thermostat Instrument SSR Relay Output for Heat Cool with Alarm-MC901 series instruments: four-digit LED digital display, measurent accuracy 0.3% the maximum resolution 0.1 degreeat thrmocouple & thermal resistance input, the maximum resolution 0.001 at analong input-Universal input, support 10 different types of thermocouples & RTD inputs by customers selected at panels-The thermocouple & thermal resiatance of instrument input signals can be set freely-Uses it in Heating Control as well as for Cooling control-Auto-tune function can find the best PID parameter automatically-Displays temperature in Celsius (C) or Fahrenheit (F)-Four digits LED display can go up to 9999-It is used in various industries to control & monitor process temperature Specification: Model MC901 Input Type Thermocouple: K, E, S, R, J, T, BRTD: Pt 100 ( The Usercan set the input signal type according the requirement. ) Temperature Range 0 ~ +1300C (this is the default setting. Usercan set thetemperaturerangewhich you wanted.) Display Celsius C / Fahrenheit (F) (user can select it) Display Resolution 0.1C / 0.1 F Accuracy 0.5% FSControl mode PID, ON/OFFControl Output Relay contact+ SSR voltage output (just support one group output) Alarm Alarm 1 (Upper-limit bias alarm, User can change to beother Alarm Mode.) Power Supply 85 ~ 265V AC, 50 / 60 Hz. Item Dimension MC901 96 x 96 x 85 mm Mounting Hole Size MC901 96 x 96 mm Weight 260 g ((including packing) Package

Includes:: :1 x PID Digit
