MICRO Minim Osd Minim Osd Mini OSD W/ KV Team MOD For Racing F3 Naze32
Flight Controller RC Drone FPV Racing

Product Description

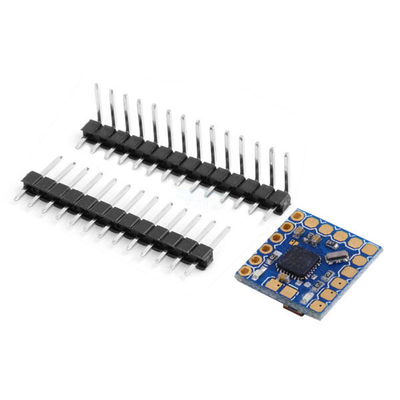

MICRO Minim OSD Minim OSD Mini OSD W/ KV Team MOD For Racing F3 Naze 32 Flight Controller The Micro Minim OSD with all the features of the very popuar Wite Spy KV Team modded OSD but in a 16x 16mm size. Doesnt have the DC/DC converter, this means less heat when powered off a flight controller. The Micro Minim OSD is the same as the older Minim OSD hardware, but has been modified to take advantage of custom firmware options. You can choose firmware that is MAVLink compatible for Ardu Copter, or Multi Wii Serial compatible for Multi Wii & Baseflight / Cleanflight control boards. You can connect two batteries up to 4S so you can see the main flight battery voltage. the second port will allow your FPV battery voltage on the display as well. Description:NO DC/DC converter, power board via 5 volts FTDI cable compatible pinout Standard 6-pin ISP header Two LED indicators A Tmega 328P withbootloader MAX7456 monochrome on-screen display 16 x 16mm Size Pad for an Analog or Digital PWM RSSI signal Pad for the connection of a Current Sensor A Tmega 328P withbootloader Standalone, or with APM / Flip / Flip 32+ flight controllers These modifications allow direct connection of two batteries (up to 4S) This hardware take the hardware mods for this firmware, & builds them into an RTF solution. This Board can be used just as a normal OSD for APM or it can be used with MWC KV Team Mod. Two independent power sections with an LED indicator on each. Solder jumpers for combining the power sections Solder jumper for PAL video optio
