Feature:1. How does the 8-sensor system work: While braking, all 4 front sensors will be active. While reversing, 2 front 4 rear sensors & LCD monitor will be active.2. Wires Connection: Red-ACC, White-Foot brake wire, Yellow-Reversing wire 12V, Black-Ground.3. Notice: For safety reasons, while braking, only the sensors sense obstacles, the LCD monitor will be active. Try to keep the sensors at the same level. In order to avoid detecting the ground, please keep the sensor & the ground has a distance of 19.6~23.6 in (21.6 in suggested). Please always keep the arrow (back of each sensor) up while installing. The Control Box should be mounted on side of the car trunk. Specification: Product Name: LCD Display Car Parking Sensor 8 Rear Front View Reverse Backup Radar System Kit Model: 634508 Control Box
Colour: Black Sensor
Colour: Silver LED Display
Size: 10.5x 6x 4cm Sensor Cable Length: 230cm Sensor:8 sensors, front & rear monitoring Front Sensor Detection Range: 0.98~3.28 ft Rear Sensor Detection Range: 0.98~7.54 ft Rate Voltage: 12 V Operating Voltage Range: 9~16 V Rate Current: 20~200m A Detecting distance: 0

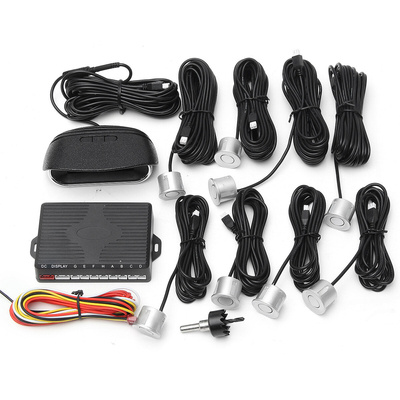

- 2.5m Ultrasonic Frequency: 40 K Hz Working Temperature: -30~7 C Display Working Temperature: -20~60 C Sound Mode: Silent, Buzzer Package Included:1 X Main Control Box 1 X LED Display 8 X Parking Sensor 1 X Power Cable 1 X Hole Saw 1 X User Manual
