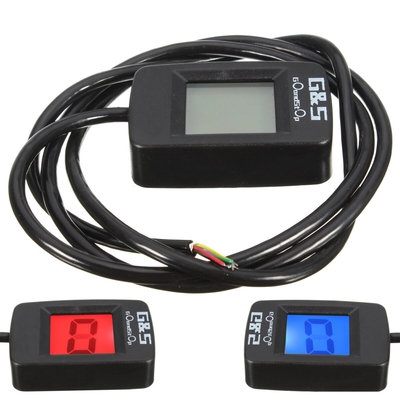

Universal Motorcycle ATV Digital LCD Gear Indicator 1-6 Gear Shift
Lever Sensor
Description:Super Bright LCD display with size 25x22mm screen.Indicates gears from 1 to max. of 6, as well as a neutral indicator.Auto programming when turn on the switch key.Campatible with all motorbikes, four wheelers, dirt bikes etc.- Will fit anything with a shift lever.Detects the current gear faster than other gear indicators that use speedmoter/tachometer signal.Specification:Display Color: Red / BlueCase Color: BlackSize:LCD Display: about 59x36.5x16mmLCD Display cable length: about 97cmMagnet: 10x4x2mmSensor Cable Length: about 98cmVoltage: DC 12-24VHow it work:1. A small magnet mounted on the gear shift lever which moves past the upshift and downshift sensor as shifts occur.2. The shift signals are then sent to the display, where the current gear number is shownWiring
Installation Guide:Black: for -Red: for +White: for neutralYellow: for the 1st sensor cable 1Green: for the 2nd sensor cable 1Blue: for the rest cables of sensor 1 and 2 togetherNote:1. Instruction is not included, professional installation is highly recommended.2. Please check the size measurement chart carefully before making payment.3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)4. The color of the actual items may slightly different from the listing images due to differentcomputer screen, thanks for your understanding.Package Included:1 X LCD Display2 X Sensor with Cables1 X Magnet1 X English Manual
Installation Guide:Black: for -Red: for +White: for neutralYellow: for the 1st sensor cable 1Green: for the 2nd sensor cable 1Blue: for the rest cables of sensor 1 and 2 togetherNote:1. Instruction is not included, professional installation is highly recommended.2. Please check the size measurement chart carefully before making payment.3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)4. The color of the actual items may slightly different from the listing images due to differentcomputer screen, thanks for your understanding.Package Included:1 X LCD Display2 X Sensor with Cables1 X Magnet1 X English Manual
