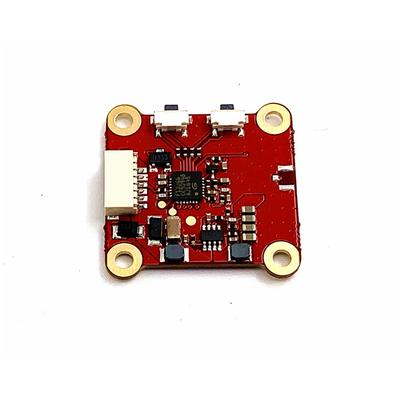

Reptile CLOUD-149 / 149 HD Spare Part 5.8G 40CH 25mW 200mW 500mW
Switchable VTX FPV Transmitter 5-24V For RC Drone FPV R
Specification: (Manual)Item Name:5.8G 40CH 25mW 200mW 500mW Switchable VTXWorking Voltage: 5-24VChannel: 40CHPower: 25mW/ 200mW /500mW SwitchableApplication: Original Replace VTX forReptile CLOUD-149 / 149 HD FPV DroneLED Indication:-The red LED indicates the state of working mode or the item when setting the VTX(flashing 1 time means selecting the channels, flashing 2 times means selecting the bands, flashing 3 times means selecting the power levels).-The blue LED indicates the state of Pit mode or the value of item when setting the VTX(e.g. when selecting the channels, 3 times of flashing means channels 3. When selecting the bands, 3 times of flashing means band C.As for the item of power levels, 3 times of flashing means at the power level of 500mW)-The green LED on indicates that the
VTX overheat protection is working, the power level will go down.Working Mode Indication:- After powering up, the red and blue LEDs will signal the following three items of VTX in turn channel, band and power level (the flashing times of the red and blue LEDs indicate the item and the value respectively). After that, the LEDs indicate the working modes.-Normal:The red and blue LED are on.-Pit mode:The red LED is on and blue LED is off.Setting Instruction:-Press and hold the C button until the red LED flash 1 time which means the item of channel selecting, then press the button can select the channels (blue LED flashing times corresponds to the channel 1-8).-Press and hold the C button again, the red LE
VTX overheat protection is working, the power level will go down.Working Mode Indication:- After powering up, the red and blue LEDs will signal the following three items of VTX in turn channel, band and power level (the flashing times of the red and blue LEDs indicate the item and the value respectively). After that, the LEDs indicate the working modes.-Normal:The red and blue LED are on.-Pit mode:The red LED is on and blue LED is off.Setting Instruction:-Press and hold the C button until the red LED flash 1 time which means the item of channel selecting, then press the button can select the channels (blue LED flashing times corresponds to the channel 1-8).-Press and hold the C button again, the red LE
