SKYSTARS STX225 DIY Version 225mm RC FPV Racing Drone PNP w/F405AIORGB LED 1200TVL 40CH 600m W VTXNotice: this is the DIY version that comes unassembled. Specification: Brand name: SKYSTARSItem name: STX225 DIY version FPV racing drone PNPRecommended 3
- 4S 1300
- 1500m Ahbattery (package not included) Frame kit Wheel base: 225mm Frame arm thickness: 4mm Bottom plate thickness: 2mm Side plate thickness: 2mm Frame kit

Material: 3K carbon fiber 22052300KV Brushless Motor Motor KV: 2300RPM/VIdle current (Io/10V): 1.26 A Lipo cell: 3-5 S Weight: 26g Max continuous current: 25 A Max continuous power: 240 W Max thrust: 700g (4S/5) Configu-ration: 12N/14 P Motor resistance (RM): 0.0572 Stator diameter: 22mm Stator thickness: 4mm Motor diameter: 27.55mm Motor body length: 20mm Overall shaft length: 34.2mm Prop adapter shaft: M5 Bolt holes spacing: 16mm Bolt thread: M3 Propeller: 5inch 35A BLHeli_32 RGB LED ESCContinuous current: 35 A Peak Current: 40A (10S) Input voltage: 2-5SBEC: NO bec Main control chip: STM32F051 Firmware: BLHeli_32 supports 500HZ PWM, Oneshot 125, Oneshot 42, Multishot, Dshot 150/300/600/1200.F405AIOUpdated. Click For Details Inculd barometer.5x UARTs 1x Group of G/S1/S2/S3/S4 pads for 4in 1 ESC Signal/GND4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)1x pair I2C1 pads 1x press button for BOOT (DFU) mode 1200TVL CMOS Camera Case

Size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H596V (0.61MP); NTSC: 1020H508V (0.52MP) Effective pixels: PAL: 976H582V (0.57MP); NTSC: 976H494V (0.48MP) Sign





...

Specifications: Brand: Skystars Name: TA LON X110 Frame Kit Wheelbase: 110mm Props

Size: 2.5inch Arm Plate

...

Specifications: Brand: SKYSTARSItem No.: TALON X110
Size:100*90*40 mm Weight: About 45g Click for More Details. Frame Kit
...

Skystars Talon 32 Slim 40A 40A BL_32 3-6S Brushless ESC w/ RGB LED Support Telemetry for RC Drone Only US$7.99 Coupon Code:BGSlim 40 Quantity Limited, Valid to Aug 31th. Specification: Brand name: Skystars Item name: Talon 32 Slim 40A ESCInput:3-6 Cell Li Po Continuous Current: 40AESC Telemetry: Yes BEC: No Current Detection: No Firmware: BLHeli_32 Dimensions: 9x 37.5x 5.8mm Weight: 6.8g

Features:- Super slim width & light, application for racing frame with slim arm width.- Support Telemetry-with F3 MCU main chip, 50% faster than normal 32bits ESC.- BLheli_32 firmware, support oneshot, multishot, Dshot- On-board RGB LED (WS2812 LED)-CNC Protective case, enhanced heat dissipation effect & protect esc well. Package Included:1x Skystars Talon 32 Slim 40A ESC

...

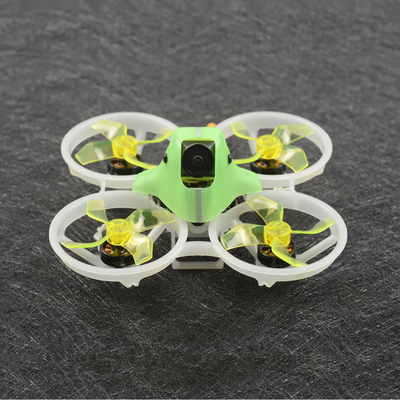

SKYSTARS Tiny Frog 75X 75mm 2019 RC FPV freestyle Racing Drone W/ F4 8K OSD 15A Blheli_S 25/100m W 5V Turbo EOS2 CAM PNP BNFSpecification: Brand name:SKYSTARSItem name: Tiny Frog 75X2019 FPV freestyle Racing Drone Wheelbase: 75mm Input voltage: 2SF4 8k flight controller: STM32F405 Six-Axis; OSD; Micro SD; 5V 1.5A BECCamera: Turbo EOS2 Camera VTX: Skystars 25-100MW 5V Version ESC: SKYSTARS 15A Blheli_S ESC 2-4 S Motor: Skystars ST1103 11000KVPropeller: Gemfan 40mm Battery:300MAH 35c 2S (PNP version without battery) Receiver: Compatible Fr Sky D16/ Flysky IBus/ DSMX receiver (option)SKYSTARS KOKO F405 FCSkystarts KOKO F405 FCItem name: F405 Betaflight Flight Controller Input power: 7.4-16V (2-4S)BEC: 5V/1AMCU: STM32F405 Gyro: MPU6000OSD: AT7456 Mounting hole: 25*25mm Weight: 3.75g FC Features- Supports Betaflight & Cleanflight.- Incould socked head especially for beginners.- Incould WS2182 RGB led on the board.SKYSTARS KOKO15A BL_S ESCKOKO Blheli_s 4IN1 ESCItem name:koko 15A ESCInput voltage: 2-4S (7.4V~16V) Continue current: 15A4 Burst current: 15/18A (4S)BEC: NOMounting: 20.5x 20.5mm / M2
Size:25X24X5MMWeight: 3.4g ESC

Features:- 4in 1 ESC for brushless tiny whoop supports DSHOT 600, BLHELIs firmware.- 2 oz. copper PCB allows up to 18A maximum continuous current.- Supports BLHelis pass-through for easy ESC upgrade & configuration.- On this


...

Skystars Tiny Frog 75X Part 75mm Polypropylene Whoop Racing Frame Kit Specification: Brand Name: Skystars Model: Tiny Frog 75 X Item Name: 75mm Wheelbase Whoop Racing Frame Kit Wheelbase: 75mm
Material: Polypropylene
Colour: White (Only One Color) Compatible with 40mm Propeller 1102/1103 Motor Camera Mount: Compatible with CADDX EOS2 Camera Recommend 2S Lipo Battery Application: Original part for Skystars Tiny Frog 75X FPV Racing Drone Package Included:1x 75mm Frame Kit 1x Canopy 1x Fixing Mount for Lipo Battery 1x bag of Screws

...

Skystars Tiny Frog 75X Part STX100 5.8G 40CH 25m W 100m W Switchable FPV Transmitter for RC Drone Specification: Brand Name: Skystars Model: STX100 Item Name: 5.8G 40CH 25/100m W Switchable FPV Transmitter Output power: 25m W/100m W switchable Control mode:button OR Channel changes & Pitmode setting through PWMWith a microphone, you can switch the audio flexibly BAT: 5V, BEC 170m A Video system: NTSC/PALFrequency: 5.8 G Hz 5 bands 40channels Weight: 1.4 g Dimension: 14*15*3mm Application: Original part for Skystars Tiny Frog 75X FPV Racing Drone Package Included:1x Skystars STX100 40CH FPV Transmitter ...

SKYSTARS Turbo S F405 Betaflight Flight Controller OSD 9V/2A BEC 2-6S 30.5x 30.5mm for RC Drone Specification: Skystars Turbo S F405 FCItem name: F405 Betaflight Flight Controller Input power: 7.4-25V (2-6S)BEC: 9V/2AMCU: STM32F405 Gyro: MPU6000 Flash: 16MBOSD: AT7456 Mounting hole: 30.5*30.5mm Weight: 6.8g FC Features- Supports Betaflight & Cleanflight.- Additional UART (UART 4)- Additional UART (UART 5)- Incould socked head & flat pads for more secure soldering especially for beginners.- I2C pad available for certain external sensors. Package Included:1 x F405 Betaflight Flight Controller ...

Only US$14.99, buy best skystars uraunus 35a blheli_32 f 4 128k brushless esc for rc drone fpv racing sale online store at wholesale price. ...

SKYSTARS Venom 217 RC FPV Racing Drone PNP BNF W/ F4 8K OSD 40A Runcam Micro Sparrow 2 800m W VTXSpecification: Brand name: SKYSTARSItem name: Venom 217 racing drone PNP/ BNFReceiver: without receiver/IBUS (FLYSKY) receiver/XM+ (FRSKY) receiver (option) Recommend battery: 3-5S 1500-1800m AHFrame kit Wheelbase: 217mm Arm Plate Thickness: 6mm TOPBottom Plate Thickness: 2mm Side Plate Thickness: 2mm
Material: 3k Carbon Fiber Weight: 79g Flight controller Micro F4 Flight Control Board (D-Shot Version)MPU: ICM20608CPU: STM32F405RGT6, dual 8K. Input Voltage: 2-6S Lipo Built-in Betaflight OSD to adjust PIDBEC Output: 5V@3A
Size: 30.5x 30.5mm board, 3mm mounting holes (M3) Weight:7.3g Support Subs/PPM/DSMX receiver ESC40A 2-5S Blheli_32 4 in 1 ESC: Input Voltage: 2-5S Lipo battery Constant Current: 40 A Peak Current: 50ABEC Ouput: 5V@1.2ACPU: STM32F051 BLHELI_32 firmware
Size: 36x 36mm (main board) Installing Hole: 30.5x 30.5mm, M3 Weight: 10g MOS Tube: finest top quality MOSFETSupport Damped Mode, Oneshot 125, Oneshot 42, Multishot, Dshot 150/300/600/1200, forward & reverse VTXFPV Transmitter Output power: 25m W/200m W/500m W/800m W switchable Control mode:button OR Channel changes & Pitmode setting through PWMWith a microphone, you can switch the audio flexibly BAT: 7-26V, BEC 5V-1A310m A----800m W Video system: NTSC/PALAntenna: MMCXFrequency: 5.8 G Hz 5 bands 40channels Weight: 4.2 g Dimension: 36*36*4.85mm Mounting Hole: 30.5mmx 30.5mm Motorskystars 2306 KV 2600, race edition Camera Description: Image Se


...
