Skywing TS2500 5.8G 2500m W 48CH AV Transmitter FPV VTX for FPVDescription:MODE:TS2500 Modulate Wideband FM Modulate Video Format NTSC/PALCharacteristics Value Units Min.TYP. Max. Output Impedance---50---Ohm Output Power 3333.534d Bm Operating Voltage 7.01230 V Supply Current---860---m A Operating Temperature-10---+85℃ Video Band Width 0---8.0 M Hz Audio carrier Frequency---6.5---MHz Video Input Level 0.81.01.2 Vp-p Video Input Impedance---75---Ohm Audio Input Level 0.52.0 Vp-p Audio Input Impedance---10k---Ohm Weight---35---g Antenna Connector RP-SMA Connector Dimensions (L x w x H)58*33*12mm Frequency:CHFR CHCH1CH2CH3CH4CH5CH6CH7CH8FRFR1 (A)5865 M Hz 5845 M Hz 5825 M Hz 5805 M Hz 5785 M Hz 5765 M Hz 5745 M Hz 5725 M Hz FR2 (B)5733 M Hz 5752 M Hz 5771 M Hz 5790 M Hz 5809 M Hz 5828 M Hz 5847 M Hz 5866 M Hz FR3 (C)5705 M Hz 5685 M Hz 5665 M Hz 5645 M Hz 5885 M Hz 5905 M Hz 5925 M Hz 5945 M Hz FR4 (D)5740 M Hz 5760 M Hz 5780 M Hz 5800 M Hz 5820 M Hz 5840 M Hz 5860 M Hz 5880 M Hz FR5 (H)5658 M Hz 5695 M Hz 5732 M Hz 5769 M Hz 5806 M Hz 5843 M Hz 5880 M Hz 5917 M Hz FR6 (L)5362 M Hz 5399 M Hz 5436 M Hz 5473 M Hz 5510 M Hz 5547 M Hz 5584 M Hz 5621 M Hz Connections: Line 1:VDD_IN (7-30V) Line 1 Line 2 Line 3 Line 4 Line 5 Line 2:GNDLine 3:VIDEO_INLine 4:VDD_OUT (5V) Line 5:GND

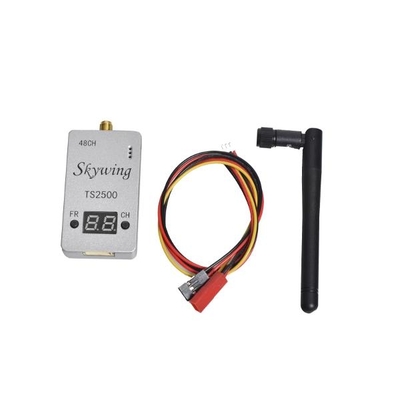

Features: Different from the other transmitter, it wouldnt be burned if the power cables were reverse or forgot to connect the antenna when you power on it. Aluminum alloy shell design, with better cooling function It is the smallest transmitter of same power VTXTransmitter distance can be up to 12-15 kilometer. Package Included:1 x Transmitter 1 x Antenna 1 x Cable
