Supra-F4-12A V1.0 F4 Flight Controller AIO OSD BEC Built-in 12A BL_S ESC40CH 200m W VTX Stack Specification: Model: Supra-F4-12A V1.0 Item Name:F4 Flight Controller AIO OSD BEC Built-in 12A BL_S ESC40CH 200m W VTX Stack MCU: STM32F411IMU: MPU6000 gyro/accelerometer (SPI)OSD: Beta Flight OSD w/ AT7456E chip Barometer:NOBEC Output: 5V@1 A Integrated LC Filter Firmware target: MATEKF411ESC MCU: BB21F16 G Continuous current: 12 A Input:2-4s lipo Supports Dshot 600, Oneshot, Multishot Current meter: 210 Target: G_H_30

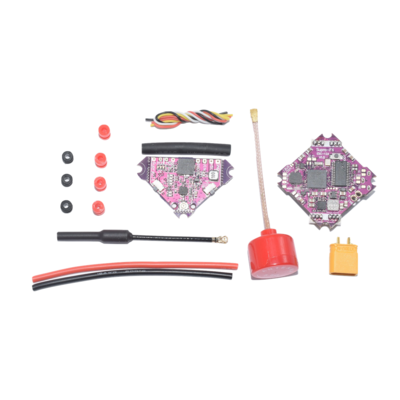

Size: 28.528.5mm board, 25.5mm mounting holes (M2) Installing Hole: 25.525.5mm, M2VTXinput voltage: DC 4.5-5.2VVTX Input current: 200MW = 500 MAPower switching: third gear 25MW, 100MW, 200MWSignal channel: 40 Frequency switching: manual button / OSD (IRC Tramp) (simultaneous support) Antenna interface: IPEXDimensions: 24mm*27.5mm, mounting holes 25mm*25mm. Weight: 7.6g Package Included:1 x Supra-F4-12A Board 2 x 20AWG cable 1 x AMASS XT30 Plug 7x Soft Silicone Shock Standoff 1 x Supra-VTX-5840 Image Transmission Module 1 x Antenna
