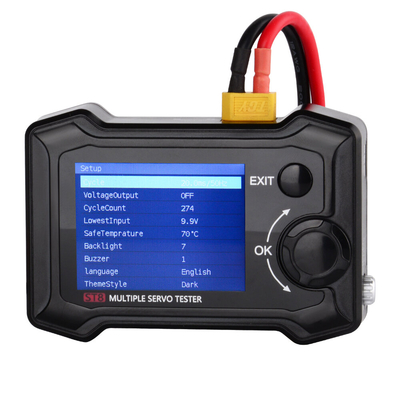

ToolkitRC ST8 8CH 100W 2A 7-28V LCD Servo Special Tester PWM/PPM/SBUS
Signal Speed Liner Step Servo Analyzer With 4-Ways
Description:Brand: ToolkitRCItem: ST8 Servo TesterChannel: 8CH OutputLoad(max): 100WInput Voltage: 7.0-28.0V@MAX 10AMain Output Voltage: 5.0-28.0V@MAX 10ASignal Output Voltage:5.0-8.4V@MAX 2A(S1-S4)5.8-8.4V@MAX 4A(S1-S4)Output Signal:100us-2900us@33-1000Hz @S1-S4PWM 500us-2500us @S5PPM 8CH @S5SBUS 16CH @S5P1 Button: 1000-2000us @P1Micro USB: Update@USB3.0Display: 2.4 TFT RGB LCD Screen(320*240 resolution)Product Size: 96*68*26mm Approx.Packing Size: 105*80*45mm Approx.Net Weight(Approx): 140gGross Weight(Approx): 160gUsing Steps:① Connect 7-28V power supply, After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;② Press EXIT button to test PWM signal;③ Totate the Button to choose different channel and press EXIT to confirm;④ Long-press
the OK button(2s) to entra system setting;⑤ Press EXIT to finish setting;Features:- ToolkitRC ST8 is a data analyzer which is capable to test the voltage, power, current, speed and signal data of the servo.- With 4-way independent programable signal, 8 channel signal output, the precision is accurating to 1us.- 4-way independent current date collection, and diplayed by graph.- Support to test multipul date, speed, liner data, steps, etc.- Support multiple signal type, PWM/PPM/SBUS, the precision is accurating to 1us.- Input Voltage is higher to 28V, also suitable to test HV servo.- The max load is upto 100W.- Multi-language system, can change the language by yourself.- USB firmware update, easy to operate
the OK button(2s) to entra system setting;⑤ Press EXIT to finish setting;Features:- ToolkitRC ST8 is a data analyzer which is capable to test the voltage, power, current, speed and signal data of the servo.- With 4-way independent programable signal, 8 channel signal output, the precision is accurating to 1us.- 4-way independent current date collection, and diplayed by graph.- Support to test multipul date, speed, liner data, steps, etc.- Support multiple signal type, PWM/PPM/SBUS, the precision is accurating to 1us.- Input Voltage is higher to 28V, also suitable to test HV servo.- The max load is upto 100W.- Multi-language system, can change the language by yourself.- USB firmware update, easy to operate
