Turbo-Fan ZY7400-SE/ Pro Brushless Mini Air Blower 130, 000 RPM Peak 39.5 m/s Max Wind Speed 2500m Ah Batteries 3-Speed Adjustable LED Light Portable ...

Description: Basicinformation Item name:remote car 5.8 Ghz FPV transmitter system Camera Lens angle:FOV:65 Lens resolution:1280X720 Pixel:130 W Frame rate:30fps Transmitting Power:27dbm Video Transmission:5.8ghz Video Transmission Transmitter Frequency: 2.4 G Control Distance:100m Battery The camera is equipped with 3.7V 450m Ahbattery Using time:about 40minutes (when it is fully charged) Charging time:about 1hours Other Parameter Packaging
Size:30.5*21*11cm Weight:610g.with packaging Product Function: Long distance photography, video control, video & picture recording. Monitor the ambient sound of the camera, & adjust the lens If you want to upgrade camera lens software, click here, there are some flies, you can find hereand this If you want to know more information about this system, you can click here Packageincluded:1X 5.8 G Transmitter 1XLCD dispaly screen 2.4G remote controller 1X 2.4G Receiver 1X FPV Camera 1X Take a Photo control line 1X USB (Universal Serial Bus) Charging Line 1X English Manual
...

Specification: Frequency: 2400-2500/5150-5850MHZS.W.R.: = 2.0 Antenna Gain: 2d Bi@2400-2500/3d Bi@5150-5850 Polarization: Linear Impedance: 50 Ohm Material of Radiator: CUCable Type: SMA R/A Pluy Connector Type: TPEEConnector Pull Test = 1 kg Operation Temperature:
- 40 ˚C ~ + 65 ˚CStorage Temperature:
- 40 ˚C ~ + 80 ˚CPackage included:1 x Turbowing FPV Antenna SMA/RP-SMA

...

Pin Assignment: Dimension: Frequency: Specification: Brand: Turbowing Weight:3g (antenna include) Electrical Characteristics: Frequency band:5362-5945 MHz Channel customer:48 Modulation:FMChannel SEL.: Touch Switch Channel Indicate:CHI-CH8 Channel indication with 4 LEDS & A~B frequency group Indicate with 3LEDSTransmit power:13 1d Bm Frequency control:PLLAll harmonic: Max-50d Bm Frequency Stability: 100 K Hz (Typ.) Frequency precision: 200 K Hz (Typ.) Channel Carrier error:1d B Antenna Port:50 Input format:NTSC/PALSENSOR:PAL:720X540/NTSC:640X480 1/4LENS ANGEL:H:120/V:100 Power consumption:200~215MA@5V DCINSupply Voltage:2.9-5.5v Operating Temperature:-10℃~+60℃ Profile dimension:14mm X12mm+18mm X17.5mm (TX)
Features:1. This product 5G8-TX V12is a 5.8G wireless camera 2.48 Channel 3. Support touch switch select channel Frequency group 4.4LED display channel & 3LEDS display frequency group information;5. Wide anglelens 6. Miniature & light weight design Note: This product on the premise of guarantee power & thermal optimization design with the appearance of Super mini & light weight, especially suitable for the small rotor & ultralight aircraft, The new filter improves the launch of the new filter waves effectively restrain higher than 5.8 g of higher harmonic interference, reduce the emission of harmful waves, the principle of which is a fixed low pass filter, he can make below 5.8 g waves pass, for above filter frequency waves to Hinder the attenuation Package Included:1 x 5.8G 48CH FPV transmitter 1 x Cable 1x
...

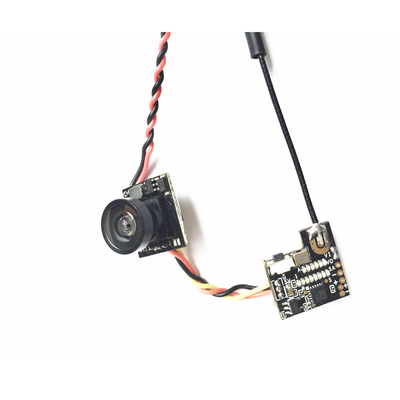

Turbowing 5.8G 48CH 25/200m W Switchable VTX With 700TVL 170/120 Degree Wide Angle DVR FPV Camera Description: Brand name: Turbowing Item name:5.8G VTX With 700TVL FPV Camera
Material: Aluminum shell Camera: 170 degree/ 120 degree 700VTL lens (Optional) Antenna: 5.8g IPX connector
Size: Frequency table (2, O means the light is on, X means the light is off, please select the corresponding frequency point according to different lighting.) Instructions:1. Press the button once to change the channel number from 1 to 8 cyclically;2. Press & hold the button for 2 seconds until the blue light flashes. Release the button & enter the frequency group setting. After entering the frequency group setting, press the button to change the frequency group. The frequency group is from A to F. Select the corresponding frequency group & press & hold for 2 seconds. Exit the settings.3. Press & hold the button for 4 seconds until the blue light is off. When the red light is on, release the button to enter the transmit power setting. After entering the transmit power setting, press the button to change the transmit power. The transmit power is from 25/200 cyclically (LED1-4 flashes slowly for 25mw, LED1-4 flashes for 200mw), select the corresponding transmit power & press 2 seconds to exit the setting. Package Included:1x Turbowing 5.8G 48CH 25/200m W Switchable VTX1x 700TVL 170/120 Degree Wide Angle DVR FPV Camera

...

Specifications: Frequency: 5.8G 48CHResolution: 700 TVLPixel: 5 million Power: 25MWVoltage: 2.9-5.5 V Current: 180MAFrequency range: 5362-5945MHZSignal system: NTSC/PAL switchable Lens: H:120 degrees /V:100 degrees Power indicator: LEDChannel carrier power difference: 1DBOmnidirectional drop antenna impedance: 50 0hms
Volume: 12x 14.5mm Net weight: 4.3g Working temperature: -10C~+60CPCB

Size: 14.5mm*12mm+14.5mm*15.6mm
Features:1. This transmitter camera is compatible with OSD.2.700TVL high picture quality, Low Power Consumption. Package included:1x Transmitter module 1x Wide angle lenscamera 1x Antenna 1x Power interface (VI VO for OSD connect)



...

Specification: Brand: Turbowing Item name:RY5.8G antenna Operating frequency range:5225 ~ 5950 M Hz S.W.R.: 1.5 Gain:8.0 d Bi 1d Bi Impedance:50 ohm Connector: SMA Male Operating temperature:- 30˚C ~ + 85 ˚CStored temperature:- 30˚C ~ + 85 ˚CPackage included:1 x Antenna ...

Specification: Brand: Turbowing Frequency:5150~ 5850 MHz Gain (Peak):14d Bi V.S.W.R 2.0 Impedance:50 ohm Nominal Effciency (%):75% Radiation: Omni-directional Cable Loss:1.5d Bi/m Max@5800 M Hz Polarization:linear, vertical Vcltage:N/A. Current consumption:N/A. Connector: SMA/RP-SMA male Length:120mm
Width:60mm Weight:19.7g Package included:1 x Turbowing 5.8 Ghz 8d Bi FPV Panel Antenna
...

Turbowing DVR CYCLOPS 3 DVR-CAM AIO 700TVL AV Camera Descriptionoverall Brand nameturbowing Item NODVR Camera Item namecyclops dvr 3size Camera 18*18*8mmweight Camera:4.5g FPV DVR Cameraoutput voltage 4.2 V Sensorsize 1/3 CMOSCamera Resolution 700TVLLens M7 Lens Angle H:170/V:100 Operating Temperature-10~+60 Input format NTSCAudio In addition it comes with a built in microphone Micro SDMax 32 Grecord 720P HDRecord Status Working LED: 1 Red LED on Press the video button to start recording. You will see a red flashing led 00:00:00 on the screen that changes from white to red. Red indicates that the camera is recording. Feature Recordable with a microphone camera to be installed on any of your drones. Memory SD CARD CAPABLE: The Cyclops 3 has a maximum capacity of 32g memory card that can usually record for 16 hours. Remarkable ultra light model with all the bells & wistles in a single coin size module. Provides transparent imagry, so that night traffic will not appear with excessive exposure. In the event there is a lack of light, the Cyclops 3 offers a low light exposure compensation to ensure you get the best image possible 16:9 4:3 Switchable Package Included 1 X DVR recorder camera ...

Specification: Frequency DC-6GS.W.R. = 2.0 Insertion Loss -1.5d B Polarization Linear Impedance 50 Ohm Material of Radiator PCBCable Type RG178 Connector MMCX Connector Connector Pull Test = 3 kg Operation Temperature
- 40 ˚C ~ + 65 ˚CStorage Temperature
- 40 ˚C ~ + 80 ˚CPackage included:1 x Turbowing MMCX to SMA/RP-SMA Female Antenna Extension Cord

...
