Upgrade Taranis Loudspeaker For Frsky Q X7 / X9D / X9D Plus And X9DP
SE Radio Transmitter

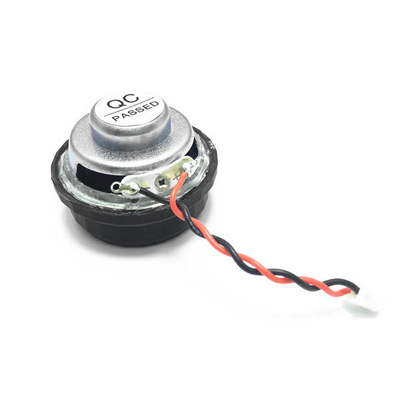

Upgrade Taranis Loudspeaker for Frsky Q X7 / X9D / X9D Plus and X9DP SERadio TransmitterTesting Video:Specification:Item Name: Taranis LoudspeakerVersion: X9DX9D Plus Version (compatible with FrskyX9D/ X9DP and X9DP SE)Q X7 Version (compatible with Frsky Q X7 Radio Transmitter)Power: 2WResistance: 8 ohms (10%)Magnetic Circuit Form: External Magnetic TypeSensitivity: 86Harmonic distortion:4Shape: roundSize (Including the Fixing Base):32 (Dia.) x 30 (H) mmX9D Version;65 (L) x 50 (W) x 22 (H)mm Q X7 VersionWeight: 18.34g (X9D Version)23.04g (Q X7 Version)--- More Louder than original speakerUpgrade Steps:For X9D Version1. Take out the Tarnais Radio battery. Notice:When you are using the Radio Transmitter, you must turn off it.2. Take off the 6 screws on the back of Radio and then open the
case, you would see the original speaker3. Then cut off the power cable (1, 2) the following photo showed. Then take out the speaker.3. Use the heat glue on the fixing base like the following photo showed.4. Put the new upgrade speaker into the former place and connect the power cable well.5. Cove the case back and screw tight. Finish.For Q X7 Version:Because the mounting space is very small, we need use the fixing base tofix the upgrade speaker into Card Solt on the back of Q X7 Radio Transmitter.1. Take out the Tarnais Radio battery. Notice:When you are using the Radio Transmitter, you must turn off it.2. Take off the 4 screws on the back of Radio and then open the
case, you would see the original speaker3. Then cut off the power cable (1, 2) the following photo showed. Then take out the speaker.3. Use the heat glue on the fixing base like the following photo showed.4. Put the new upgrade speaker into the former place and connect the power cable well.5. Cove the case back and screw tight. Finish.For Q X7 Version:Because the mounting space is very small, we need use the fixing base tofix the upgrade speaker into Card Solt on the back of Q X7 Radio Transmitter.1. Take out the Tarnais Radio battery. Notice:When you are using the Radio Transmitter, you must turn off it.2. Take off the 4 screws on the back of Radio and then open the
