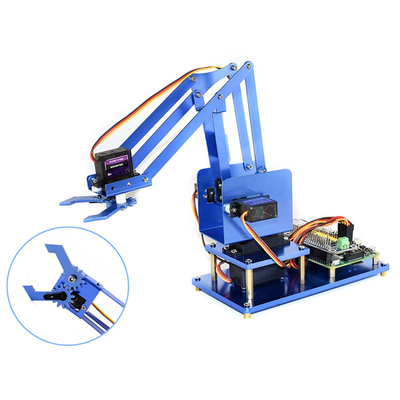

Waveshare Raspberry Pi 3B+ 3B Board DIY 4DOF Metal RC Robot Arm With
Digital Servos
OverviewEquip your Raspberry Pi with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.This starter robotic arm kit includes: servo driver HAT, metal mechanical arm structure, and 4x metal gear servos. When used with the Raspberry Pi, it is easy to control the arm by smart phone through Bluetooth or WiFi connection.The Servo DriverAdopts Servo Driver HAT:- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+- I2C controlled, using only 2 pins- Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal- Standard servo interface, supports common used servo such as SG90, MG90S,
MG996R, etc.- Reserved I2C control pins, allows to work with other control boards- Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)The Robot Arm Structure:- 4-DOF, large solid base, metal mechanical grasper- Full aluminium alloy body, sandblasting oxidation surface, strongdurable- Clever mechanical structure and mounting design, agile to control, easy to build- Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth movingManual and APP, PC Source, Click Here!Package:1* Robot Kit1* MG996R Servo3* MG90S Servo1* MG996R Servo Plate1* US Plug 5V 3A Adapter1* 150MM Servo Wire2* Screwdriver1* Scerw SetControl Board(selectable)
MG996R, etc.- Reserved I2C control pins, allows to work with other control boards- Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)The Robot Arm Structure:- 4-DOF, large solid base, metal mechanical grasper- Full aluminium alloy body, sandblasting oxidation surface, strongdurable- Clever mechanical structure and mounting design, agile to control, easy to build- Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth movingManual and APP, PC Source, Click Here!Package:1* Robot Kit1* MG996R Servo3* MG90S Servo1* MG996R Servo Plate1* US Plug 5V 3A Adapter1* 150MM Servo Wire2* Screwdriver1* Scerw SetControl Board(selectable)
