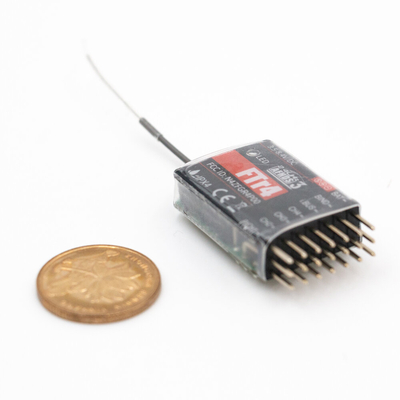

FlySky FTr4 2.4GHz 4CH AFHDS 3 RC Receiver Support PWM/PPM/I.bus/S.bus
Output Compatible NB4 PL18 For RC Drone Fixed Win

Product Description

Fly Sky FTr 4 2.4 G Hz 4CH AFHDS 3 RC Receiver Support PWM/PPM/I.bus/S.bus Output Compatible NB4 PL18 for RC Drone Fixed Wings Gliders OVERVIEW:FTr 4 adopts AFHDS 3, Flysky s third-generation automatic frequency hopping digital system. It uses a single-antenna bidirectional transmission system & is uniquely designed to save space & output standard PWM, PPM, i BUS & S. Bus signals. Description: Brand Name: Fly Sky Item Name: FTr 4 Receiver PWM Channels: 4RF.2. 4GHZ2. 4G Protocol: AFHDS 3 Distance: 500m (Range without interference 1m from the ground) Antenna: Single Antennaput Power: 3.5-8.4VRSSI: Yes Data Output: PWM/PPM/i BUS/S BUSTemperature Range:15C-+60 C Humidity Limit: 20%-95% Online Update: Yes Dimensions: 33.7*20*107mm Weight: 4.9g Certification: CE, FCC ID N4ZFGR4P00 Binding:1. Insert the bind cable into the receivers bind port 2. Plug the power cable into any other port, & the receivers LED will start to flash quickly indicating that it has entered bind mode 3. Put the transmitter into bind mode; (See the transmitters instruction manual for more information)4. Binding is successful when the receivers LED will stop flashing Remove the power & bind cables from the receiver.5. Reconnect the power cable to the receiver 6. Check to make sure that the transmitter & receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again. Note: Ports used to connect the receiver to the various components BAT: Separate power supply interface for t
