LDARC / Kingkong 20x 20mm Flytower 12A BLheli_S 2-3S ESCOmnibus F4 FC AIO OSD48CH 0/25/100/200m W VTXNotice: The ESC is upgraded in 2-4S Lipo support. Will update photos asap. Specification: Brand Name: LDARCItem Name: 12A BL_s 4 In 1 ESCF4 FC Integrated with OSD40CH 0/25/100/200m W VTX Flytower Flytower

Height: 21mm 12A 4 In 1 ESC (Bottom Level) Con. Current: 12 A Peak Current: 15A (5s) Firmware: BLHeli_SInput Voltage: 2-3S
Size: 25x 28mm Mounting Hole: 20x 20mm Net Weight: 4g Support Oneshot, Multishot, DShot 150/300 & DShot 600 Omnibus F4 Flight Controller (Middle Level) Firmware: Omnibus F4 SD- Built-in Betaflight OSDOutput Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 3.7g Support DSMX, SBUS & PPM Receiver 5.8G 48CH 0/25/100/200m W VTX (Top Level) Channel: 25CHPower:0/25/100/200m W (Switchable) Output Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 2g Blue Light points at the CH indicator (CH1-CH8, flashes 1-8 times) Green Light points at the Band Indicator (Band A- Band F, flashes 1-6 times) Red Light points at the Power Indicator (25-100m W, flashed 1-3 times) Package Included:1x Omnibus F4 Flight Controller 1x 12A BL_S 4 In 1 ESC1x 48CH 25/100/200m W VTX1x bag of Screws & Standoffs 1x Antenna 3x Cable




...

LDARC / Kingkong KK 3 Layer Flytower Spare Part Screws & Aluminum Column for Building RC Drone Specification: Brand Name: LDARCItem Name: ...

LDARC / Kingkong KK Flytower Part 20x 20mm 12A BLheli_S 2-3S DShot 600 4 In 1 ESC for RC Racing Drone Click here to buy the originalconnection cablealtogether. Specification: Brand Name: LDARCItem Name: 12A BLheli_S 2-3S 4 In 1 ESCCon. Current: 12 A Peak Current: 15 A Input Voltage: 2-3 S Firmware: BLheli_SMouting Hole: 20x 20mm Size: 25x 28mm Weight: 4.0g Usage: original parts for LDARC / Kingkong KK Flytower

Features:- BLheli_S (L_H_0) firmware-Support Oneshot, Multishot, Dshot 150, Dshot 300 & DShot 600- Also support voltage monitor- with 20x 20mm mounting hole- Mini size & light weight (only 4g) Package Included:1x 12A 4 In 1 ESC

...

LDARC / Kingkong KK Flytower Part 20x 20mm 20A BLheli_S 2-4S DShot 600 4 In 1 ESC for RC Racing Drone Notice: Only package included ESC like the photos showed.clickhereand buy cables together. Specification: Brand Name: LDARCItem Name: 20A BLheli_S 2-4S 4 In 1 ESCCon. Current: 20 A Peak Current: 25 A Input Voltage: 2-4S Supported Firmware: BLheli_S (G_H_30 ) Mounting Hole: 20x 20mm
Size: 28x 31mm Net Weight: 5g (0.3)

Features:- BLheli_S (G_H_30) firmware- Support Oneshot, Multishot, Dshot 150, DShot 300 & DShot 600- 20x 20mm Mounting Hole- Super light, only 5g Package Included:1x 20A BLheli_S 4 In 1 ESC


...

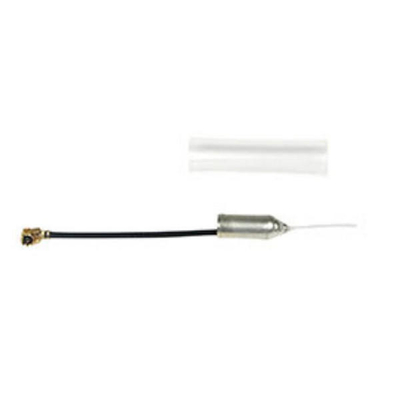

LDARC / Kingkong KK Flytower Part 5.8G 48CH 0/25/100/200m W VTX Transmitter for RC Drone FPV Racing Notice: Only package included VTXantenna like the photos showed.clickhereand buy cables together. Specification: Brand Name: LDARCItem Name: 5.8G 40CH0/25/100/200m W Switchable FPV Transmitter Input Voltage: 2-6S Lipo Supported Output to camera voltage: 5 V Channel: 48CHPower: Off / 25m W / 100m W / 200m W Mounting Hole: 20x 20mm
Size: 25x 25mm Net Weight: 2.0g How to use VTX: Blue Lightpoints at the CH indicator (CH1-CH8, flashes 1-8 times) Green Lightpoints at the Band Indicator ( Band A- Band F, flashes 1-6 times) Red Lightpoints at the Power Indicator (25-100m W, flashed 1-3 times) Package Included:1x 5.8G 48CH 25/100/200m W FPV Transmitter 1x Antenna
...

LDARC / Kingkong KK Flytower Spare Part Connection Cable for Receiver Camera & Buzzer Specification: Brand Name: LDARCItem Name: Connection Cable for Receiver Camera & Buzzer Usage: Original Parts for LDARC / Kingkong KK Flytower Package Weight: 6.1g Package Included:1x Receiver Connection Cable 1x Camera Connection Cable 1x Connection Cable for Buzzer Or LED Strip ...

LDARC / Kingkong Suitcase Plastic Portable Box for FPVEGG Pro/ 200GT/ ET Series FPV Racer Notice: Only package included the empty suitcase. Do Not include the drone in the box. Specification: Brand Name: LDARCItem Name: Suitcase Portable Box for RC Drone
Material: PC
Colour: Clear White
Size: 275*207*90mm (L*W*H) Weight: 504.3g Application: for KLDARC FPVEGG Pro / 200GT /ET Series FPV Racer Package Included:1x LDARC Suitcase


...

LDARC / Kingkong Tiny Meter Monitor Voltage for 1S 3.7V- 4.3V Lipo Battery Specification: Brand Name: LDARC / Kingkong Item Name: Tiny Meter 1S Lipo Battery Input Voltage: 3-5 V Display Range: 3.7-4.3V (All lights bright, points at the voltage over 4.3V) Usage: to monitor the voltage for 1S Lipo Battery Weight: 1.6g Package Included:1x LDARC Tiny Meter ...

LDARC / Kingkong XT1406 1406 3600KV 2-4S Brushless Motor for Racing Drone Specification: Brand Name: LDARCModel: XT1406 Item Name: 1406 3600KV 2-4S Brushless Motor Version: CW Rotation (with Black Nut)CCW Rotation (with Siliver Nut)KV: 3600KVInput Voltage: max. 4S Lipo Shaft Diameter: M5 Motor Mounting Hole: M2 12 Motor

Width: 18mm Motor

Height: 28.55mm Weight: 13.2g (with cable & nut) Propeller recommended: 3-4.5 Inch Package Included:1x LDARC XT1406 3600KV Motor



...

Description: Brand:LDARCWeight:42g
Size: 69*17*20mm Package Weight: 47g Package
Size:145*90mm Max Charger Rate:

...
