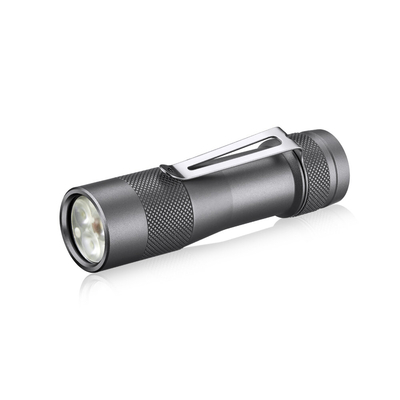

LUMINTOP FW3A XPL HI 2800LM ANDÚRIL UI EDC Flashlight EDC LED
Flashlight Mini LED Keychain Light Mini Torch
Add two options: Nichia 219C 4000K / SST20 4000K (high CRI)Introduction:The FW3A was designed by Fritz15 and the flashlight forums TLFBLF.Brought to life by Lumintop.A small 18650 triple LED lamp with tail switch and agreat, a compact, ergonomic, feature-packed EDC-style light.Specification:Emitter:Three LEDs on a copper DTP MCPCB e.g.XP-L HI 3D(NW 5000K)XP-L HI 1A(CW 6500K)Optic:Standard TIR optical lensFlux:~2800 lm (XP-L Hi)Intensity:~12 500 cd ANSI throw ~223 m (XP-L Hi)Firmware:The FW3A uses free software called Andril, distributed under the terms of the GPL v3. Code is available fromhttp://tiny.cc/TKAndurilUser interfaces:[1]By default the FW3A is set to useSMOOTH RAMPING.Instant access to TURBO mode is also provided.[2]A more conventionalSTEPPED RAMPINGUI is available if youlike
discrete modes level. You can choose how many steps you want[3]MOMENTARYmode is useful for signaling purposes or rapidly/brieflylighting up targets. To exit this mode, physically disconnect power[4]MUGGLEmode uses a reduced output.[5] It has an electronicLOCKOUTfor safety, but acts also as momentarylow light.Other functions: Battery check, sunset, beacontactical strobe, party strobe, bike flasher, candlelight, lightning stormBattery:One flat-top or button-top 18650 cell. Anunprotected cell is recommended.Max. length 66 mm.Cell is not included.Driver:FET+7+1 driver. Low parasitic drain while OFFBody:Aluminum with hard-coat anodizingSwitch:Electronic tail switchIngress rating:Equivalent to IPX7W
discrete modes level. You can choose how many steps you want[3]MOMENTARYmode is useful for signaling purposes or rapidly/brieflylighting up targets. To exit this mode, physically disconnect power[4]MUGGLEmode uses a reduced output.[5] It has an electronicLOCKOUTfor safety, but acts also as momentarylow light.Other functions: Battery check, sunset, beacontactical strobe, party strobe, bike flasher, candlelight, lightning stormBattery:One flat-top or button-top 18650 cell. Anunprotected cell is recommended.Max. length 66 mm.Cell is not included.Driver:FET+7+1 driver. Low parasitic drain while OFFBody:Aluminum with hard-coat anodizingSwitch:Electronic tail switchIngress rating:Equivalent to IPX7W
