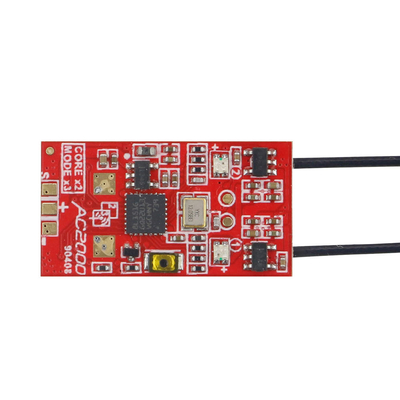

X-BOSS AC2000 RC Mini Dual-core Tri-mode RSSI Receiver Output S.BUS
Support S-FHSS D16 Non-EU D16 EU-LBT For RC Drone
X-BOSS AC2000 RC Mini Dual-core Tri-mode RSSI Receiver Output S.BUS Support S-FHSS D16 Non-EU D16 EU-LBTfor RC DroneSPECIFICATIONS:(Manual)Item name: AC2000 Mini ReceiverRated voltage 4.0V~6.0VSize 14 x 26 mmWeight 1.8gSupport S-FHSS(8 CHs)/D16 non-EU(14 CHs)/D16 EU-LBT(14 CHs) three modes, output S.BUS signalPerfect fit high reliability medium and small size droneThe channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.Ingenuity hardware dual-core framework, two CC2500+LNA wireless system connect two antennas. Compare other recivers that switch antennas depend on signal strength, AC2000 two antennas can keep receive full-time, greatly enhance the response speed and reliability in execrable wireless environment.STATUS LED: LED of AC2000
blink twice then solid when power on, the LED meaning as fowllow.First blinkSecond blinkThen LED solidS-FHSSreservesno signalD16 non-EUreservesreceive backup signal (brightness meaning signal strength)D16 EU-LBTreservesreceive preferred signal (brightness meaning signal strength)BIND: First blink after power on indicate the receive mode, RED isS-FHSS, GREEN isD16 non-EU, YELLOW isD16 EU-LBT. S-FHSS BINDD16 non-EU and EU-LBT BINDTurn on the TX, then power on AC2000 while pressing thekey, GREEN LED fast blink meaning bind mode, user canrelease the key. Bind procedure is completed and thereceiver working normally when GREEN LED solid.Power off the TX, Power on AC2000 while pressing the key, GREEN LED fas
blink twice then solid when power on, the LED meaning as fowllow.First blinkSecond blinkThen LED solidS-FHSSreservesno signalD16 non-EUreservesreceive backup signal (brightness meaning signal strength)D16 EU-LBTreservesreceive preferred signal (brightness meaning signal strength)BIND: First blink after power on indicate the receive mode, RED isS-FHSS, GREEN isD16 non-EU, YELLOW isD16 EU-LBT. S-FHSS BINDD16 non-EU and EU-LBT BINDTurn on the TX, then power on AC2000 while pressing thekey, GREEN LED fast blink meaning bind mode, user canrelease the key. Bind procedure is completed and thereceiver working normally when GREEN LED solid.Power off the TX, Power on AC2000 while pressing the key, GREEN LED fas
