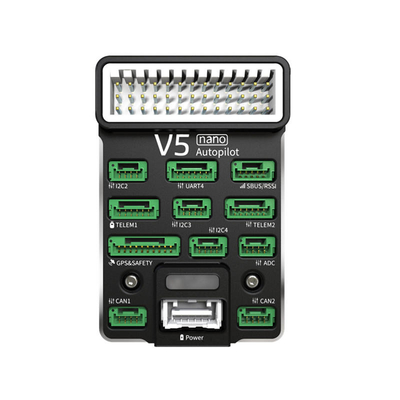

CUAV V5 NANO Flight Controller For PX4 PIX FPV Drone Multi-rotors VTOL
UAV Fixed Wing
Specifications:Hardware Parameters:- Main FMU Processor: STM32F765(32-bit, 216MHz, 2MB flash, 512KB RAM)Features:- Compact but powerful V5 nano flight controller + NEO GPS- Support for hardware on open source platform PX4 and Autopilot- Suitable for fixed-wing drones, helicopters, multicopters, FPVs, VTOL, Unmanned Boats, UAVs- High Performance: Equipped with STM32F765 microprocessor, features 216MHz main frequency, 2M flash and 512K SDRAM. There are four groups of isolation chips and a MS5611 high-precision air gauge.- Easy to install and dismantle with 2.6mm spacing between IO pins.- Real-time Data Monitor: Five groups of built-in sensors enhance its safety and stable performance. There are ICM-20689 accelerometer and gyroscope, ICM-20602 accelerometer and gyroscope, BMI055
accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.Sensors:- Accelerometer: ICM-20602/ICM-20689/BMI055- Gyroscope: ICM-20602/ICM-20689/BMI055- Magnetometer: IST8310- Air Gauge: MS5611Interfaces:- UART Ports: 5- I2C Ports: 4- PWM Output: Up to 11- PWM Input: 4- Signal Input Protocol for Remote Control: PPM/SBUS/DSM- RC IN: 1- PPM IN:1- RSSI Input: PWM or 3.3V analog voltage- CAN Standard Bus: 2- CurrentVoltage Input: 1- Safety Switch: 1- GPS Port: 1- Debug Port: 1- JATG Port: 1- USB Port: 1 (Type-C)Supported Models:- For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned BoatsWorking ConditionsPhysical Parameters:- PM Working Voltage: 4.5 to
accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.Sensors:- Accelerometer: ICM-20602/ICM-20689/BMI055- Gyroscope: ICM-20602/ICM-20689/BMI055- Magnetometer: IST8310- Air Gauge: MS5611Interfaces:- UART Ports: 5- I2C Ports: 4- PWM Output: Up to 11- PWM Input: 4- Signal Input Protocol for Remote Control: PPM/SBUS/DSM- RC IN: 1- PPM IN:1- RSSI Input: PWM or 3.3V analog voltage- CAN Standard Bus: 2- CurrentVoltage Input: 1- Safety Switch: 1- GPS Port: 1- Debug Port: 1- JATG Port: 1- USB Port: 1 (Type-C)Supported Models:- For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned BoatsWorking ConditionsPhysical Parameters:- PM Working Voltage: 4.5 to
