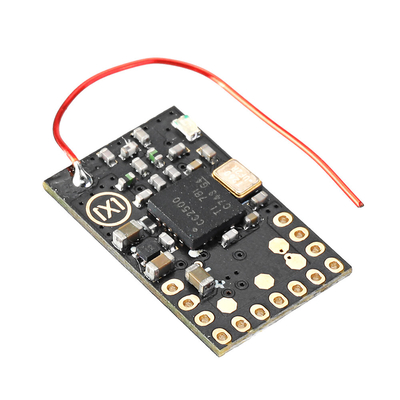

DasMikro Das87 FrSky Nano 7CH RC Receiver Integrated 2 Mixed
Bi-directional ESC For Tank Type
nullDescription:This RC receiver unit is FrSky D8 compatible. It offers full 7-channel support in ultra-light weight and mini size. It is suitable for 1/87 RC conversion.Features:1. FrSky 2.4GHz D8 compatible2. 7 channel support3. Integrated two standalone Bi-directional ESC (maximum 1A currency)4. Integrated one Single-directional ESC (maximum 3A currency)4. Mini size (16.0 x 10.0 x 2.5mm)5. Operating Voltage 3.0V – 4.2V6. Product Weight: 0.5gOutput Usage:Servo signal output:CH1: (Spare, normally use to control the sound unit or light unit)CH2: (Throttle)CH3: (Spare, normally use to control the sound unit or light unit)CH6: (Spare)CH7: (Spare)Bi-directional ESC output:OUT1/OUT2: connect a brushed motor, tank mode mixed controlled by CH2/CH4 signal from transmitterOUT3/OUT4: connect a
brushed motor, tank mode mixed controlled by CH2/CH4 signal from transmitterCH2 is throttle and CH4 is steeringSingle-directional ESC or LED output:OUT5: connect a brushed motor or LEDs, controlled by CH5 signal from transmitterCompatible Transmitters:FrSky Stick-type transmitterJumper Stick-type transmitter like T8SG/T12/T12PRO/T16/T16PROAny OPENTX and Deviation Stick-type transmitter installed with CC2500 RF modulePackage Included:1 x ReceiverBind:Power on the receiver, LED will flash slowly. Wait 15 seconds and the LED will flash quickly, this means the receiver is in paring mode. Now you could operate your transmitter to start the bind operation. Once the bind is successful, the LED on recei
brushed motor, tank mode mixed controlled by CH2/CH4 signal from transmitterCH2 is throttle and CH4 is steeringSingle-directional ESC or LED output:OUT5: connect a brushed motor or LEDs, controlled by CH5 signal from transmitterCompatible Transmitters:FrSky Stick-type transmitterJumper Stick-type transmitter like T8SG/T12/T12PRO/T16/T16PROAny OPENTX and Deviation Stick-type transmitter installed with CC2500 RF modulePackage Included:1 x ReceiverBind:Power on the receiver, LED will flash slowly. Wait 15 seconds and the LED will flash quickly, this means the receiver is in paring mode. Now you could operate your transmitter to start the bind operation. Once the bind is successful, the LED on recei
