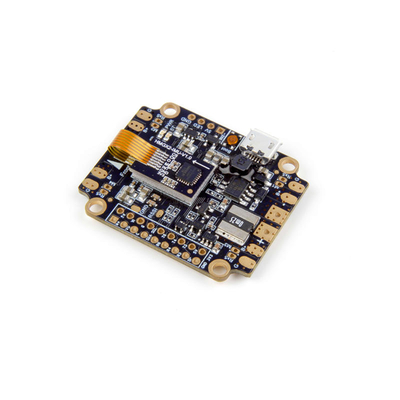

Holybro Kakute F4 AIO All In One V2 Flight Controller STM32 F405 MCU
Integrated PDB OSD For RC Drone
Holybro Kakute F4 AIO All in One V2 Flight Controller STM32 F405 MCU Integrated PDB OSD for RC Drone FPV Racing Multi RotorThe Holybro Kakute F4 AIO All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), and on-screen display (OSD) in one. The Kakute F4 AIO V2s layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.Description:Brand name: HolybroItem name: F4 AIO V2 Flight ControllerMCU: STM32F405RGT6 32-bit processorIMU: ICM20689 (SPI)Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)5 hardware UARTS (UART1, 3, 4, 5, 6)Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM
receivers are not supported.128 Mbit Dataflash chip for Blackbox loggingDimensions: 35x43x7mm (includes USB in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 7gFeatures:Additional UART (UART 4) added to support serial camera communication such as to RunCam Split. Please note this is NOT the same as Betaflight Camera Control feature, which controls the menu of FPV cameras like Swift, Monster, etc.Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 and KISS.Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.Barometer sensor on board allows altitude hold mode.I2C pad available for certain external sensors.Suppor
receivers are not supported.128 Mbit Dataflash chip for Blackbox loggingDimensions: 35x43x7mm (includes USB in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 7gFeatures:Additional UART (UART 4) added to support serial camera communication such as to RunCam Split. Please note this is NOT the same as Betaflight Camera Control feature, which controls the menu of FPV cameras like Swift, Monster, etc.Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 and KISS.Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.Barometer sensor on board allows altitude hold mode.I2C pad available for certain external sensors.Suppor
