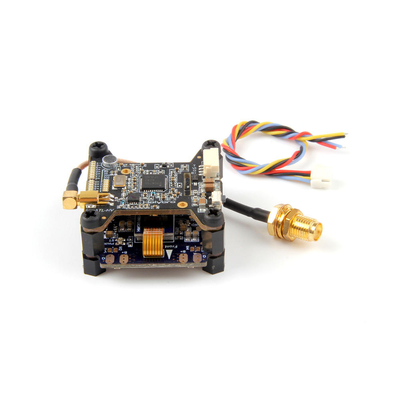

Holybro Kakute F4 AIO V2 Flight Controller PDB OSD+Atlatl HV V2 5.8G
40CH FPV Transmitter For RC Drone
Holybro Kakute F4 AIO V2 Flight Controller PDB OSD+Holybro Atlatl HV V2 5.8G 40CH FPV TransmitterHolybro Kakute F4 AIO V2(user munual):Brand name: HolybroItem name: F4 AIO V2 Flight ControllerMCU: STM32F405RGT6 32-bit processorIMU: ICM20689 (SPI)Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)5 hardware UARTS (UART1, 3, 4, 5, 6)Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.128 Mbit Dataflash chip for Blackbox loggingDimensions: 35x43x7mm (includes USB in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 7gFeatures:-Additional UART (UART 4) added to support serial camera communication such as to RunCam Split. Please note this is NOT the same as Betaflight
Camera Control feature, which controls the menu of FPV cameras like Swift, Monster, etc.-Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 and KISS.-Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.-Barometer sensor on board allows altitude hold mode.-I2C pad available for certain external sensors.-Supports Betaflight and Cleanflight.-Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.-Soft-mounting built in. The IMU (gyro) chip on this board is mounted on vibration-isolating foam. This means that there
Camera Control feature, which controls the menu of FPV cameras like Swift, Monster, etc.-Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 and KISS.-Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.-Barometer sensor on board allows altitude hold mode.-I2C pad available for certain external sensors.-Supports Betaflight and Cleanflight.-Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.-Soft-mounting built in. The IMU (gyro) chip on this board is mounted on vibration-isolating foam. This means that there
