Holybro Kakute F4 AIO V2 Flight Controller PDB OSD+ Holybro Atlatl HV V2 5.8G 40CH FPV Transmitter Holybro Kakute F4 AIO V2 (user munual): Brand name: Holybro Item name: F4 AIO V2 Flight Controller MCU: STM32F405RGT6 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART)5 hardware UARTS (UART1, 3, 4, 5, 6) Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.128 Mbit Dataflash chip for Blackbox logging Dimensions: 35x 43x 7mm ( Includes: USB (Universal Serial Bus) in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 7g Features:-Additional UART (UART 4) added to support serial camera communication such as to Run Cam Split. Please note this is NOT the same as Betaflight Camera Control feature, which controls the menu of FPV cameras like Swift, Monster, etc.-Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 & KISS.-Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.-Barometer sensor on board allows altitude hold mode.-I2C pad available for certain external sensors.-Supports Betaflight & Cleanflight.-Betaflight OSD. Change PIDs, adjust common configuration parameters, & change video transmitter channel & power level, all using your transmitter sticks & goggles.-Soft-mounting built in. The IMU (gyro) chip on this board is mounted on vibration-isolating foam. This means that there ...
Holybro Kakute F4 V2 Flight Controller Atlalt HV V2 25~800m W VTX Tekko 32 F3 40A 3-6S Blheli_32 Brushless ESCItem Specificaiton Feature Kakute F4 V2 Flight Controller Descriptions: The Holybro Kakute F4 All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), & on-screen display (OSD) in one. The Kakute F4 V2s layout makes it easy to wire up the other components of the multirotor while keeping the build neat & tidy. MCU: STM32F405RGT6 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280 USB (Universal Serial Bus) VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART) 5 hardware UARTS (UART1, 3, 4, 5, 6) Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported. 128 Mbit Dataflash chip for Blackbox logging Dimensions: 35x 30x 8mm ( Includes: USB (Universal Serial Bus) in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 7g New V2 Features Additional UART (UART 4) added to support serial camera communication such as to Run Cam Split. Please note this is NOT the same as Betaflight Camera Control feature, which controls the menu of FPV cameras like Swift, etc. Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 & KISS. Through-hole solder pads instead of flat pads for more secure soldering especially for beginners. Barometer sensor on board allows altitude hold mode. I2C pad available for certain external sensors. Supports Betaflight a ...
Holybro Kakute F4 V2 Flight Controller Tekko 32 35A 4 In 1 Blheli 32 3-6S Brushless ESCNote: The ESC board had chagned to the one with Copper foil.KAKUTE F4 FLIGHT CONTROLLER V2 The Holybro Kakute F4 All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), & on-screen display (OSD) in one. The Kakute F4 V2s layout makes it easy to wire up the other components of the multirotor while keeping the build neat & tidy. Specifications MCU: STM32F405RGT6 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART)5 hardware UARTS (UART1, 3, 4, 5, 6) Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.128 Mbit Dataflash chip for Blackbox logging Dimensions: 35x 30x 8mm ( Includes: USB (Universal Serial Bus) in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 7g Features- Supports Betaflight & Cleanflight.- Betaflight OSD. Change PIDs, adjust common configuration parameters, & change video transmitter channel & power level, all using your transmitter sticks & goggles.- Soft-mounting built in. The IMU (gyro) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.- New high-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro & accelerometer. Can run at up to 32 k Hz.- 2 oz. copper PCB allows up to ...
Holybro Kakute F4 V2 Flight Controller Tekko 32 F3 4 In 1 40A 3-6S Blheli_32 Brushless ESC Stack 30.5x 30.5mm Item Specification Feature Kakute F4 V2 Descriptions: The Holybro Kakute F4 All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), & on-screen display (OSD) in one. The Kakute F4 V2s layout makes it easy to wire up the other components of the multirotor while keeping the build neat & tidy. MCU: STM32F405RGT6 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280 USB (Universal Serial Bus) VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART) 5 hardware UARTS (UART1, 3, 4, 5, 6) Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported. 128 Mbit Dataflash chip for Blackbox logging Dimensions: 35x 30x 8mm ( Includes: USB (Universal Serial Bus) in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 7g Supports Betaflight & Cleanflight. Betaflight OSD. Change PIDs, adjust common configuration parameters, & change video transmitter channel & power level, all using your transmitter sticks & goggles. Soft-mounting built in. The IMU (gy ro) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself. New high-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gy ro & accelerometer. Can run at up to 32 k Hz. 2 oz. copper PCB allows up to 120A maximum continuous current. Dedi ...
Holybro Kakute F4 V2 STM32F405 Flight Controller With Betaflight OSD for RC Multirotor FPV Racing Drone Description: The Holybro Kakute F4 flight controller supports important features of Betaflight/ Cleanflight, such as OSD & Dshot. The faster F4 processor gives room for future feature development: run all features at the fast 8 k Hz PID loop rate, at single-digit CPU utilization! Because of issues with serial inversion, other F4 boards struggle to support protocols such as Fr Sky SBUS & Smart Port at the sametime. The Kakute F4 is designed to support all serial protocols at once. Specification (user manual):MCU: STM32F405RGT6 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART)5 hardware UARTS (UART1, 3, 4, 5, 6) Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.128 Mbit Dataflash chip for Blackbox logging Dimensions: 35x 30x 8mm ( Includes: USB (Universal Serial Bus) in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 7g New V2 Features:-Additional UART (UART 4) added to support serial camera communication such as to Run Cam Split. Please note this is NOTthe same as Betaflight Camera Control feature, which controls the menu of FPV cameras like Swift, etc.-Additional UART (UART 5) added to support ESC telemetry such as from BLHeli_32 & KISS.-Through-hole solder pads instead of flat pads for more secure soldering especially for beginners.-Barometer sensor ...
Holybro Kakute F7 AIO F7 V1.5 Flight Controller w/ OSD BEC4 PCS 65A BL_32 Tekko 32 F3 Metal ESC Combo Specificaiton: Brand Name: Holybro Model: Kakute F7 V1.5 AIOTekko 32 F3 Metal Combo Tekko 32 F3 Metal ESCModel: Tekko 32 F3 Metal Item Name: 65A BL_32 DShot 1200 ESCQuantity: 4 PCSCon. Current: 65 A Peak Current: 80 A Input Voltage: 3-6S Lipo Support Ext. cap needed for 6s (220uf 35v for 6s usage.)- F3 (M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108 Mhz- Mosfet tested at 4S 65A, under props, nothing covered for 1min- Onboard WS2812B LED Size: 18 x 27 mm Weight: 4.4g/PCKakute F7 V1.5 AIO Flight Controller (Manual) Item Name: F7 V1.5 Flight Controller AIO OSD BEC & Current Sensor MCU: STM32F745 32-bit processor IMU: MPU6000 (SPI) Barometer: BMP280 Current Sensor: Approx. 130 amps maximum measurable value USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART)6 hardware UARTS (UART1, 2, 3, 4, 6, 7) All UARTS support hardware inversion. SBUS, Smart Port, & other inverted protocols work on any UART without uninvert hack. Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.TF card for Blackbox logging Dimensions: 35x 48x 7mm ( Includes: foam-mounted gyro board in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 11.2g Package Included:4x Holybro ekko 32 F3 Metal ESC 65A4x 35V 220u F Capacitor 4x 24AWG 100mm Black wire 4x 24AWG 100mm White wire 4x 24AWG 100mm Blue wire 4x 16AWG 100mm Red wire 4x 16AWG 100 ...
Holybro Kakute F7 AIO STM32F745 Flight Controller w/ OSD PDB Current Sensor Barometer for RC Drone Overview: The Holybro Kakute F7 All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), & on-screen display (OSD) in one. The Kakute F7 AIOs layout makes it easy to wireup the other components of the multirotor while keeping the build neat & tidy.IMU updated to MPU6000, Re-designed & more reliable damping structure Specification (manual): Brand name: Holybro Item name: kakute F7 AIO V1.5MCU: STM32F745 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280 Current Sensor: Approx. 130 amps maximum measurable value USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART)6 hardware UARTS (UART1, 2, 3, 4, 6, 7) All UARTS support hardware inversion. SBUS, Smart Port, & other inverted protocols work on any UART without uninvert hack. Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.TF card for Blackbox logging Dimensions: 35x 48x 7mm ( Includes: foam-mounted gyro board in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 11g Features: Supports Betaflight, Butterflight, & Cleanflight. Betaflight OSD. Change PIDs, adjust common configuration parameters, & change video transmitter channel & power level, all using your transmitter sticks & goggles. Soft-mounting built in. The IMU (gyro) chip on this board is mounte ...
Holybro Kakute F7 Flight Controller Betaflight OSD+ Atlatl HV V2 5.8G FPV Transmitter for RC Drone Specification: Holybro Kakute F7: Brand name: Holybro Item name: Kakute F7MCU: STM32F745 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART) 6 hardware UARTS (UART1, 2, 3, 4, 6, 7) All UARTS support hardware inversion. SBUS, Smart Port, & other inverted protocols work on any UART without uninvert hack. Supports serial receivers (SBUS, i Bus, Spektrum, Crossfire) only. PPM & PWM receivers are not supported.TF card for Blackbox logging Dimensions: 35x 41x 7mm ( Includes: foam-mounted gyro board in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 9g Features: Supports Betaflight, Butterflight, & Cleanflight. Betaflight OSD. Change PIDs, adjust common configuration parameters, & change video transmitter channel & power level, all using your transmitter sticks & goggles. Soft-mounting built in. The IMU (gyro) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself. High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro & accelerometer. Can run at up to 32 k Hz sampling rate. Ready for autonomous flight: Integrated BMP280 barometer & SCL/SDA pads for use with external GPS/magnetometer units. 2 oz. copper PCB allows up to 120A maximum continuous current. Dedicated bootloader button for easy firmware fla ...
Description: Brand: Holybro Item Name: Holybro Kakute F7 HDV AIO4* Tekko 32 F3 Metal 65A ESCHolybro Kakute F7 HDV AIOSpecification: Overview Holybro Kakute F7 HDV All-In-One is designed to work with the DJI FPV VTx module. The GH portavailable on the board makes it much more convenient for you to connect Holybro Kakute F7 HDV AIOto the DJI FPV VTx, for both signal & power supply. Features: Supports Betaflight. High-performance / low-noise IMU. MPU6000 with 6-axis gyro & accelerometer. Ready for autonomous flight: Integrated BMP280 barometer & SCL/SDA for use with external GPS/magnetometer units. Dedicated bootloader button for easy firmware flashing. Low-profile design fits into even very compact frames. 2 oz. copper PCB allows up to 120A maximum continuous current. Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on B+ padonly). Automatic voltage monitoring. No need to run a separate v Bat wire for voltage monitoring; the KAKUTE F7 HDV AIO monitors voltage directly from the power supply. Filtered voltage output for clean, noise-free video. 2 On-board regulators output 5V & 8V. 5 Voutput up to 1.5A to power peripherals such as receiver, FPV camera, or LED strip. 8V output upto 2A to DJI FPV VTx. Supports BLHeli pass-through for easy ESC upgrade & configuration. Specifications: MCU: STM32F745 32-bit processor IMU:MPU6000 Barometer: BMP280 USB (Universal Serial Bus) VCP Driver (all UARTs usable simultaneously; USB (Universal Serial Bus) does not take up a UART) 6 hardware UARTS (UART1, 2, 3, 4 ...
Available

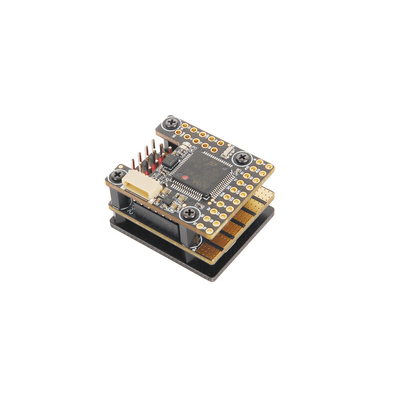

Holybro Kakute F405-Wing Mini Flight Controller 168 MHz 5V/7.2V BEC
I2C Port For Fixed Wing VTOL RC Airplane
Only US$42.99, buy best holybro kakute f405-wing mini flight controller 168 mhz 5v/7.2v bec i2c port for fixed wing vtol rc airplane sale online store at wholesale price.
Only US$42.99, buy best holybro kakute f 405-wing mini flight controller 168 mhz 5v/7.2v bec i 2c port for fixed wing vtol rc airplane sale online store at wholesale price.
