LDARC ET85 HD 87.6mm F4 4S Cinewhoop FPV Racing Drone PNP BNF w/ Caddx Turtle V2 1080P Camera Specification: Brand Name: LDARCModel: ET85 HDItem Name:85mm F4 OSD 4S FPV Racing Drone PNP BNFVersion: PNP (Without Receiver) ; BNF (With AC2000 Receiver) Drone Wheelbase: 87.6mm Weight: 69.9g (without battery)F4 OSD Flight Controller Brand Name: LDARCFirmware:MATEKF411MCU: STM32F4AAMPU: MPU6000BEC: 5V 1.5 A Onboard Current Sensor Onboard ESCSupport SBUS DSM2/X i BUS Receiver Onboard 12A BLheli_S (G_H_30) 4in 1 ESCCon. Current: 12 A Max. Current: 20 A Support 2-4S Lipo Firmware: BLheli_SOnboard AC2000 Receiver (Only BNF Version has) Item Name: AC2000 Receiver Rated voltage: 4.0V~6.0 V Support S-FHSS (8 CHs)/D16 non-EU (14 CHs)/D16 EU-LBT (14 CHs) three modes, output S.BUS signal Perfect fit high reliability medium & small size drone The channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.48CH 0/25/100/200m W VTXBrand Name: LDARCChannel: 40CHPower:0/25/100/200m W Switchable Input Votlage: 2-4 S Support IRC Tramp 51mm 3-Blade Propeller Brand Name: LDARCItem Name:51mm 3-Blade Propeller
Colour: Black Quantity: 10 CW10 CCWXT1103 6500KV Motor Brand Name: LDARCModel: XT1103 Item Name: 1103 6500KVShaft Diameter: 1.5mm Input Voltage: 3-4 S Motor Mounting Hole

Size: 9 (M2) Weight: 4.2g Caddx Turtle V2 1080P Camera Image sensor: 1/2.7 CMOS sensor Horizontal: 800TVLTV system: NTSC/PAL, changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20VFPV FOV: 155


...

LDARC ET85 Spare Part 88mm Frame Kit w/ Canopy Buzzer Combo Set for RC Drone FPV Racing Specification: Brand Name: LDARCItem Name:88mm Frame Kit w/ Canopy Buzzer Combo Set Frame Wheelbase: 87.6mm Net Weight: 15g Application: Original Parts for LDARC ET85 HD / ET85 Series FPV Racing Drone Pacakge Included:2x Frame 1x Bottom Plate 2x Canopy for ET85 FPV (Green Black)2x Canopy for ET85 HD ( Green Black)1x Buzzer 4x Thermal insulation board 8x Anti-vibration Ball 1x Set of Screws ...

Specification: Brand Name: LDARCModel: ET85 D Item Name: 87.6mm Wheelbase F4 4S 2 Inch FPV Racing Drone Version: BNF (with Bulit-in DJI Receiver) Drone Weight: 122g ET85D 87.6mm Frame Kit Wheelbase: 87.6mm

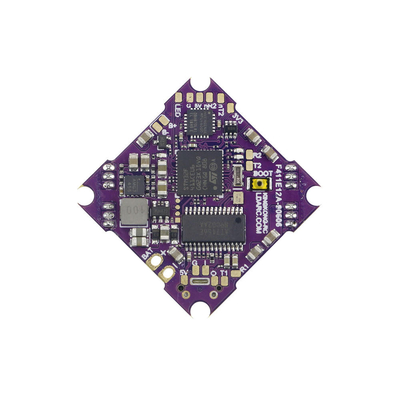

Material: Carbon Fiber Upper Plate Thickness: 1mm Bottom Plate Thickness: 2mm Camera Angle: 15-45 Degree Kit Weight: 24g F411E12A F4 Flight Controller AIO 12A ESCBrand Name: LDRACModel: F411E12 A Item Name: F4 Flight Controller MCU: STM32F411 MPU: MPU6000 Firmware Target: MATEKF411 OSD: AT7456E, Support Betaflight OSDOnboard Current Senstor (Current Scale value 210) Support DSM2/X, SBUS, IBUS, Crossfire, F. Port Receiver Input Voltage: 2-4S Lipo ESC Max Current 12A Each Way B Lheli_S 4in 1 ESC, Target: G_H_30XT1105 4250 3-4S Brushless Motor Brand Name: LDARCModel: XT1105 Item Name: 1105 4250KV Motor Input Voltage: 3-4S Lipo Shaft Diameter: 1.5mm Mounting Hole: 9x 9mm, M2 Weight: 6.1g 2045 2x 4.5 2 Inch 4-Blade Propeller Brand Name: LDARCItem Name: 2045 2x 4.5 2 Inch 4-Blade Propeller Quantity: 10 CW10 CCWDJI Air Unit Operating Frequency: 5.725-5.850 GHz Transmitter Power (EIRP): FCC/SRRC: 30 d Bm; CE: 14 d Bm Low Latency Mode (720p/120fps): 28 ms High-Quality Mode (720p/60fps): 40 ms Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)I/O Interface: USB (Universal Serial Bus)-C, MMCX, 3-in-1 port, micro SD card slot Operating Temperature Range: 32° to 104°F (0° to 40°C) Input Power: 7.4-17.6 V, about 4-9 WSensor: 1/3.2'' CMOS; Effective Pixels: 4 MLens: 2.1 mm, f/2.1 Shutter:
...

Specification: Brand Name: LDARCModel: ET85 D Item Name: 87.6mm Wheelbase F4 4S 2 Inch FPV Racing Drone Version: PNP (without Receiver) Drone Weight: 122g ET85D 87.6mm Frame Kit Wheelbase: 87.6mm
Material: Carbon Fiber Upper Plate Thickness: 1mm Bottom Plate Thickness: 2mm Camera Angle: 15-45 Degree Kit Weight: 24g F411E12A F4 Flight Controller AIO 12A ESCBrand Name: LDRACModel: F411E12 A Item Name: F4 Flight Controller MCU: STM32F411MPU: MPU6000 Firmware Target: MATEKF411OSD: AT7456E, Support Betaflight OSDOnboard Current Senstor (Current Scale value 210) Support DSM2/X, SBUS, IBUS, Crossfire, F. Port Receiver Input Voltage: 2-4S Lipo ESC Max Current 12A Each Way B Lheli_S 4in 1 ESC, Target: G_H_30XT1105 4250 3-4S Brushless Motor Brand Name: LDARCModel: XT1105 Item Name: 1105 4250KV Motor Input Voltage: 3-4S Lipo Shaft Diameter: 1.5mm Mounting Hole: 9x 9mm, M2 Weight: 6.1g 2045 2x 4.5 2 Inch 4-Blade Propeller Brand Name: LDARCItem Name: 2045 2x 4.5 2 Inch 4-Blade Propeller Quantity: 10 CW10 CCW5.8G 48CH 25/100/200m W FPV Transmitter Power: 0/25/100/200m W Working Voltage: 5V, Support IRC-Tramp Camera 5V Power Output CLC filter Antenna Use IPEX Socket FPV Camera (NOT Included)NO Camera, support 19mm / 20mm Width FPV Camera Receiver (NOT Included)NO Receiver Lipo Battery (NOT Included) Recommend LDARC 4S 14.8V 430m Ah Lipo Battery XT30 Plug

Features:- 4S HD Digital Whoop- Compatible with Caddx Vista Module- Light Weight, less than 250g Package Included:1x ET85D FPV Drone (NOT Include DJI Air Unit, Receiver, Camera)1


...

Description: Brand:LDARC/ KINGKONGCenter Hole Diameter: 25*25mm Mounting

Size: 20*20mm Firmware: MATEKF411

...

LDARC Kingkong KK 220 F4 OSD 20A BL_S FPV Racing Drone w/ 25/100/200m W VTX Runcam Swift Mini PNPSpecification: Brand Name: LDARCModel: KK 220 Item Name: 220mm F4 OSD FPV Racing Drone Version: PNP (Without Receiver & Battery) Wheelbase: 220mm
Material: Carbon Fiber 7075 Aluminum Alloy Input Voltage: 3-4 S Recommend Battery: 4S 1300m Ah above 25C Lipo Weight: 244.4g (Without Receiver & Battery)220mm Frame Kit Wheelbase: 220mm
Material: Carbon Fiber 7075 Aluminum Alloy Arm Thickness: 5mm Weight: 93.1KK20 3 Layer Flytower F4 FC20A ESCVTXTower Monting Hole: 20x 20mm (M2) Tower

Height: 21mm Tower Weight: 15.9g LDARC Omnibus F4 FCFirmware: Omnibus F4SD- Built-in Betaflight OSDOutput Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 4g (Support DSMX, SBUS & PPM Receiver 20A 4 in 1 ESCCon. Current: 20 A Peak Current: 25A (5s) Firmware: BLHeli_SInput Voltage: 2-4S
Size: 29x 31mm Mounting Hole: 20x 20mm Net Weight: 5.3g Support Oneshot, Multishot, DShot 150/300 & DShot 6005.8G 48CH 0/25/100/200m W VTX (Top Level) Channel: 25CHPower:0/25/100/200m W (Switchable) Output Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 2g Blue Lightpoints at the CH indicator (CH1-CH8, flashes 1-8 times) Green Lightpoints at the Band Indicator ( Band A- Band F, flashes 1-6 times) Red Lightpoints at the Power Indicator (25-100m W, flashed 1-3 times)XT1806 2500KV Motor Brand Name: LDARCModel: XT1806 Item Name: 1806 2500KV 3-4S Brushless Motor Version: CW / CCW (Optional)KV: 2500KVInput Voltage: 3-4S Lipo Max.






...

LDARC Kingkong KK 5GT 213mm F4 OSD FPV Racing Drone w/ BL_S 48CH 25/200/600m W VTX Runcam Swift Mini Specification: Brand Name: LDARCModel: KK 5GTItem Name: 213mm F4 OSD FPV Racing Drone Version: PNP (Without Receiver & Battery) Wheelbase: 213mm
Material: Carbon Fiber 7075 Aluminum Alloy Input Voltage: 3-4 S Recommend Battery: 4S 1300-1800m Ah above 25C Lipo Weight: 336.7g (Without Receiver & Battery)213mm Frame Kit Wheelbase: 213mm
Material: Carbon Fiber 7075 Aluminum Alloy Arm Thickness: 5mm Weight: 102.5g KK Super Flytower FC AIOVTXTower Monting Hole: 30.5x 30.5mm Tower

Height: 16.5mm (Include heat sink ) Tower Weight: 28.9g F4 Flight Controller Integrated with VTX Module: Chip: STM32f 405 MCUGyroscope: MPU6000 Firmware: OMNIBUSF4SDOSD: Betaflight OSD With 5V @ 3A (VTX & FC have been used. Suggest less than 6 LED ) ( If use more than 6 LED, please use BEC Module ) Support PPM Recceiver/SBUS/DSMX Receiver (PPM Receiver need solder the pad) Channel: 48CHPower: Off/25/200/600m W (TX control through the Furious FPV / Tramp peropheral protocol ) Camera Voltage: 5 V Weight: 11.3g
Size: 36x 36mm (30.5x 30.5mm Mounting Hole)KK Super Flytower 40A BLheli_S 4 in 1 ESCWorking Voltage: 2-4S Lipo Con. Current: 40 A Burst Current: 45A (5S) Firmware: BLheli_S/ Dshot 150/DShot 300/DShot 600 16.6 (G_H_30)
Size:39x 41mm (with pad ) Moutning Hole: 30.5x 30.5mm Weight: 12.5g Support BLHeli Suite setting-Integrated PDB, -Integrated Battery Monitoring- Integrated FC Power XT2306 2500KV Motor Model: XT2306KV: 2500KVLipo Battery: Support 3-4SS





...

LDARC Kingkong KK Super Flytower Part 7P Cable Conenction Wire for Flight Controller ESCSpecification: Brand Name: LDARCItem Name: 7P Connection Cablefor Flight Controller ESCApplication: Original Cable for Kingkong KK Super Flytowe Connecting FC to ESCPackage Included:1x LDARC 7P Cable ...

LDARC Kingkong KK Super Flytower Part MMCX to SMA Female Antenna Extension Cable Specification: Brand Name: LDARCItem Name:MMCX to SMA Female Antenna Extension Cable Connector: MMCX to SMA Female Length: 105mm Application: Original Part for LDARC KK Super Flytower Package Included:1x LDARCAntenna Extension Cable ...

Kingkong 90GT Spare Part Micro F3 Mini 6 Dof Flight Control Board Hardware Connection Diagram Firmware Update Default setting of Receiver is 5th Channel ARM; 6th Channel Mode switching. Specification: Brand Name: Kingkong Item Name: Micro F3 6 Dof Flight Control Board Input Voltage: 2-4S Lipo
Size: 35.1*19.6*6.52mm Weight: 3.05g Usage: Original Flight Control Spare Part for Kingkong 90GT Drone Package Included:1x Kingkong Micro F3 Flight Control
...
