Description: Brand:LDARC/ KINGKONGCenter Hole Diameter: 25*25mm Mounting

Size: 20*20mm Firmware: MATEKF411

...

LDARC F411E12A F4 Flight Controller AIO OSD BECBuilt-in 12A BL_S 2-4S 4in 1 ESCNotice: ONLY Includeflight controller.DO NOT included VTX Module. Cilick here to buy VTX Moduletogether. Specification: Brand Name: LDARCModel:F411E12 A Item Name: F4 OSD Flight Controller AIO BEC Current Sensor 12A 4in 1 ESCMCU: STM32F411 Gyroscope: MPU6000OSD: AT7456EBEC: 5V@1.5A, max. 3 A Firmware: MATEKF411 Current Scale Value: 210ESC: 4in 1 12A BLheli_S C-H-30ESC Max Current 12A Each Way Input Voltage: 2-4SLED Pad: Yes Buzzer Pad: Yes Application: compatible with LDARC ET75 / ET85/ AK103/ AK123, Beta 85X, Mobula 7 etc. whoop fpv racing drone. Package Included:1x LDARCF411E12A F4 FC AIO 12A ESC1x Cable 8x Anti-Vibration Standoffs 3x Screws ...

LDARC Kingkong KK 220 F4 OSD 20A BL_S FPV Racing Drone w/ 25/100/200m W VTX Runcam Swift Mini PNPSpecification: Brand Name: LDARCModel: KK 220 Item Name: 220mm F4 OSD FPV Racing Drone Version: PNP (Without Receiver & Battery) Wheelbase: 220mm
Material: Carbon Fiber 7075 Aluminum Alloy Input Voltage: 3-4 S Recommend Battery: 4S 1300m Ah above 25C Lipo Weight: 244.4g (Without Receiver & Battery)220mm Frame Kit Wheelbase: 220mm
Material: Carbon Fiber 7075 Aluminum Alloy Arm Thickness: 5mm Weight: 93.1KK20 3 Layer Flytower F4 FC20A ESCVTXTower Monting Hole: 20x 20mm (M2) Tower

Height: 21mm Tower Weight: 15.9g LDARC Omnibus F4 FCFirmware: Omnibus F4SD- Built-in Betaflight OSDOutput Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 4g (Support DSMX, SBUS & PPM Receiver 20A 4 in 1 ESCCon. Current: 20 A Peak Current: 25A (5s) Firmware: BLHeli_SInput Voltage: 2-4S
Size: 29x 31mm Mounting Hole: 20x 20mm Net Weight: 5.3g Support Oneshot, Multishot, DShot 150/300 & DShot 6005.8G 48CH 0/25/100/200m W VTX (Top Level) Channel: 25CHPower:0/25/100/200m W (Switchable) Output Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 2g Blue Lightpoints at the CH indicator (CH1-CH8, flashes 1-8 times) Green Lightpoints at the Band Indicator ( Band A- Band F, flashes 1-6 times) Red Lightpoints at the Power Indicator (25-100m W, flashed 1-3 times)XT1806 2500KV Motor Brand Name: LDARCModel: XT1806 Item Name: 1806 2500KV 3-4S Brushless Motor Version: CW / CCW (Optional)KV: 2500KVInput Voltage: 3-4S Lipo Max.






...

LDARC Kingkong KK 5GT 213mm F4 OSD FPV Racing Drone w/ BL_S 48CH 25/200/600m W VTX Runcam Swift Mini Specification: Brand Name: LDARCModel: KK 5GTItem Name: 213mm F4 OSD FPV Racing Drone Version: PNP (Without Receiver & Battery) Wheelbase: 213mm
Material: Carbon Fiber 7075 Aluminum Alloy Input Voltage: 3-4 S Recommend Battery: 4S 1300-1800m Ah above 25C Lipo Weight: 336.7g (Without Receiver & Battery)213mm Frame Kit Wheelbase: 213mm
Material: Carbon Fiber 7075 Aluminum Alloy Arm Thickness: 5mm Weight: 102.5g KK Super Flytower FC AIOVTXTower Monting Hole: 30.5x 30.5mm Tower

Height: 16.5mm (Include heat sink ) Tower Weight: 28.9g F4 Flight Controller Integrated with VTX Module: Chip: STM32f 405 MCUGyroscope: MPU6000 Firmware: OMNIBUSF4SDOSD: Betaflight OSD With 5V @ 3A (VTX & FC have been used. Suggest less than 6 LED ) ( If use more than 6 LED, please use BEC Module ) Support PPM Recceiver/SBUS/DSMX Receiver (PPM Receiver need solder the pad) Channel: 48CHPower: Off/25/200/600m W (TX control through the Furious FPV / Tramp peropheral protocol ) Camera Voltage: 5 V Weight: 11.3g
Size: 36x 36mm (30.5x 30.5mm Mounting Hole)KK Super Flytower 40A BLheli_S 4 in 1 ESCWorking Voltage: 2-4S Lipo Con. Current: 40 A Burst Current: 45A (5S) Firmware: BLheli_S/ Dshot 150/DShot 300/DShot 600 16.6 (G_H_30)
Size:39x 41mm (with pad ) Moutning Hole: 30.5x 30.5mm Weight: 12.5g Support BLHeli Suite setting-Integrated PDB, -Integrated Battery Monitoring- Integrated FC Power XT2306 2500KV Motor Model: XT2306KV: 2500KVLipo Battery: Support 3-4SS





...

LDARC Kingkong KK Super Flytower Part 7P Cable Conenction Wire for Flight Controller ESCSpecification: Brand Name: LDARCItem Name: 7P Connection Cablefor Flight Controller ESCApplication: Original Cable for Kingkong KK Super Flytowe Connecting FC to ESCPackage Included:1x LDARC 7P Cable ...

Kingkong 90GT Spare Part Micro F3 Mini 6 Dof Flight Control Board Hardware Connection Diagram Firmware Update Default setting of Receiver is 5th Channel ARM; 6th Channel Mode switching. Specification: Brand Name: Kingkong Item Name: Micro F3 6 Dof Flight Control Board Input Voltage: 2-4S Lipo
Size: 35.1*19.6*6.52mm Weight: 3.05g Usage: Original Flight Control Spare Part for Kingkong 90GT Drone Package Included:1x Kingkong Micro F3 Flight Control
...

LDARC Kingkong XT2306 1700KV 4-6S Brushless Motor with Motor Mounting Base for KK 5GT RC Drone Specification: Brand Name: LDARCModel: XT2306 Item Name: 2306 1700KV 4-6S Brushless Motor Version: CW / CCW (Optional)KV: 1700KVInput Voltage: 4-6S Lipo Shaft Diameter: M5 Motor

Width: 28mm Motor

Height: 31.7mm Weight: 34.1g Recommend Propeller: 7 Inch (4S) / 5-6 Inch (5S)5 Inch (6S) Application: Compatible with for LDARC KK 5GT FPV Drone Package Included:1x XT2306 1700KV Motor (CW / CCW )1x Motor Mounting Base (Red)1x bag of Screws



...

LDARC Kingkong XT2306 2500KV 3-4S Brushless Motor w/ Mounting Base for KK 5GT FPV Racing Drone Specification: Brand Name: LDARCModel: XT2306 Item Name: 2306 2500KV 3-4S Brushless Motor Version: CW Rotation with Black Nut CCW Rotation with Sliver Nut (Optional)KV: 2500KVInput Voltage: 3-4S Lipo Shaft Diameter: M5 Motor

Width: 28mm Motor

Height: 31.7mm Weight: 34.1g Recommend Propeller: 5150 Application: original part for LDARC KK 5GT FPV Drone Package Included:1x XT2306 2500KV Motor (CW Or CCW )1x Motor Mounting Base 1x bag of Screws



...

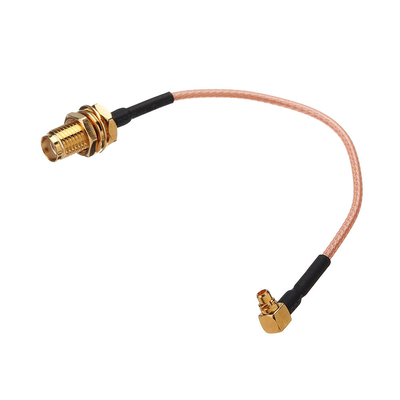

LDARC KK 220 FPV Drone Part IPEX to SMA Female Antenna Extend Cable Specification: Item name: Adapter Extend Cable Connector: IPEX to SMA Female Application: Original part for LDARC KK 220 Drone Package included:1 x IPEX to SMA Female Extend Cable ...

LDARC KK Super Flytower Part 30.5x 30.5mm Omnibus F4 OSD Flight Controller w/ 48CH 25/200/600m W VTXSpecification: Brand Name: LDARCItem Name: Omnibus F4 Flight Controller Chip: STM32F405 MCUGyroscope: MPU6000 Firmware:OMNIBUSF4SD- Built-in Betaflight OSD- With 5V 3A (VTX & FC have been used. ) Suggest less than 6 LED. Please use BEC Module while using more than 6 LED.-TX control through the Furious FPV/ Tramp peripheral protocol- Ground Station: Betaflight- Built-in VTX Module onboard VTX Power: Off/25/200/600m W Frequcy Band: 48CHCamera Voltage: 5V
Size: 36x 36mm Mounting Hole: 30.5x 30.5mm Weight: 11.3g- Support DSMX, PPM, SBUS Receiver (Setting refers to manual) Package Included:1x LDARC F4 Built-in VTX Module
...
