LDARC Kingkong KK Super Flytower Part 7P Cable Conenction Wire for Flight Controller ESCSpecification: Brand Name: LDARCItem Name: 7P Connection Cablefor Flight Controller ESCApplication: Original Cable for Kingkong KK Super Flytowe Connecting FC to ESCPackage Included:1x LDARC 7P Cable ...

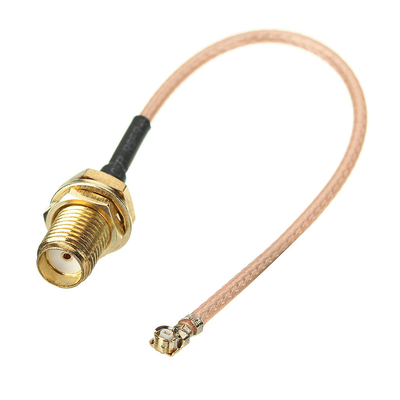

LDARC Kingkong KK Super Flytower Part MMCX to SMA Female Antenna Extension Cable Specification: Brand Name: LDARCItem Name:MMCX to SMA Female Antenna Extension Cable Connector: MMCX to SMA Female Length: 105mm Application: Original Part for LDARC KK Super Flytower Package Included:1x LDARCAntenna Extension Cable ...

Kingkong 90GT Spare Part Micro F3 Mini 6 Dof Flight Control Board Hardware Connection Diagram Firmware Update Default setting of Receiver is 5th Channel ARM; 6th Channel Mode switching. Specification: Brand Name: Kingkong Item Name: Micro F3 6 Dof Flight Control Board Input Voltage: 2-4S Lipo
Size: 35.1*19.6*6.52mm Weight: 3.05g Usage: Original Flight Control Spare Part for Kingkong 90GT Drone Package Included:1x Kingkong Micro F3 Flight Control
...

LDARC Kingkong XT2306 1700KV 4-6S Brushless Motor with Motor Mounting Base for KK 5GT RC Drone Specification: Brand Name: LDARCModel: XT2306 Item Name: 2306 1700KV 4-6S Brushless Motor Version: CW / CCW (Optional)KV: 1700KVInput Voltage: 4-6S Lipo Shaft Diameter: M5 Motor

Width: 28mm Motor

Height: 31.7mm Weight: 34.1g Recommend Propeller: 7 Inch (4S) / 5-6 Inch (5S)5 Inch (6S) Application: Compatible with for LDARC KK 5GT FPV Drone Package Included:1x XT2306 1700KV Motor (CW / CCW )1x Motor Mounting Base (Red)1x bag of Screws



...

LDARC Kingkong XT2306 2500KV 3-4S Brushless Motor w/ Mounting Base for KK 5GT FPV Racing Drone Specification: Brand Name: LDARCModel: XT2306 Item Name: 2306 2500KV 3-4S Brushless Motor Version: CW Rotation with Black Nut CCW Rotation with Sliver Nut (Optional)KV: 2500KVInput Voltage: 3-4S Lipo Shaft Diameter: M5 Motor

Width: 28mm Motor

Height: 31.7mm Weight: 34.1g Recommend Propeller: 5150 Application: original part for LDARC KK 5GT FPV Drone Package Included:1x XT2306 2500KV Motor (CW Or CCW )1x Motor Mounting Base 1x bag of Screws



...

LDARC KK Super Flytower Part 30.5x 30.5mm Omnibus F4 OSD Flight Controller w/ 48CH 25/200/600m W VTXSpecification: Brand Name: LDARCItem Name: Omnibus F4 Flight Controller Chip: STM32F405 MCUGyroscope: MPU6000 Firmware:OMNIBUSF4SD- Built-in Betaflight OSD- With 5V 3A (VTX & FC have been used. ) Suggest less than 6 LED. Please use BEC Module while using more than 6 LED.-TX control through the Furious FPV/ Tramp peripheral protocol- Ground Station: Betaflight- Built-in VTX Module onboard VTX Power: Off/25/200/600m W Frequcy Band: 48CHCamera Voltage: 5V
Size: 36x 36mm Mounting Hole: 30.5x 30.5mm Weight: 11.3g- Support DSMX, PPM, SBUS Receiver (Setting refers to manual) Package Included:1x LDARC F4 Built-in VTX Module
...

LDARC/ Kingkong KK12 KK Flytower 20x 20mm 12A BLheli_S ESCOmnibus F4 Flight Controller with OSDNotice: The ESC was upgraed in 2-4S. Will wpdate photos asap. Specification: Brand Name: LDARCItem Name: 12A BL_s 4 In 1 ESCF4 FC Integrated with OSD40CH 0/25/100/200m W VTX Flytower Flytower

Height: 21mm 12A 4 In 1 ESC (Bottom Level) Con. Current: 12 A Peak Current: 15A (5s) Firmware: BLHeli_SInput Voltage: 2-4S
Size: 25x 28mm Mounting Hole: 20x 20mm Net Weight: 4g Support Oneshot, Multishot, DShot 150/300 & DShot 600 Omnibus F4 Flight Controller (Top Level) Firmware: Omnibus F4 SD- Built-in Betaflight OSDOutput Voltage for Camera: 5V
Size: 25x 25mm Mounting Hole: 20x 20mm Weight: 3.7g Support DSMX, SBUS & PPM Receiver Package Included:1x 12A 4 In 1 ESC1x F4 Flight Controller 4x M2*18 Screws 8x Rubber Ring 4x M2 Nut 4x Aluminum Column 3x Connection Cable



...

LDARC KKT-VTX200 5.8G 48CH 0/25/100/200m W Switchable FPV Transmitter for RC Drone Notice: ONLY Include VTX Module. DO NOT included flight controller. Cilick here to buy F411E12A Flight Controller together. Specification: Brand Name: LDARCModel:KKT-VTX200 Item Name:5.8G 48CH 0/25/100/200m W Switchable FPV Transmitter Frequency: 48CHInput Voltage: 5 V Output Volatage: 5V (CLC Filter) Power: 0/25/100/200m W Mounting

Size: 25.5x 25.5mm- Support IRC-Tramp, TX can adjust power & frequency- Application: Original VTX Part for LDARCF411E12A Flight Controller AIO ESC Board, which is compatible with LDARC ET75 / ET85/ AK103/ AK123, Beta 85X, Mobula 7 etc. whoop fpv racing drone. Package Included:1x LDARC KKT-VTX200 FPV Transmitter Module 1x Antenna 1x Cable 3x Screws

...

Description: Brand: LDARCItem Name: KKT30-F4D F405 Mounting Hole:30.5*30.5mm Weight: 7g Firmware: Betaflight F4OSDFirmware: Betaflight OSDGround Station: Betaflight Camera Voltage: 5 V Digital Independent Power Supply Exterior

Size: 36mm*36mm Package Included:1*KKT30-F4D F405

...

Description: Brand: LDARCItem Name:KKT30-V600 VTXInput Voltage: 7~24 V Output Voltage: 5 V Frequency: 48CHPower: 0~600m W Mounting

Size: 30.5*30.5mm Weight: 7g Exterior

Size: 36*36mm- Wide input voltage & low power consumption 7-24V- 5V@1A high load output- Up to 600m W of output power- 48CH, With self-test output power function- 30.5*30.5mm mounting size- IRC-Tramp Frequency & power control:- Button frequency control:shot press once to switch CH (CH1-CH8) long press for 2s & then short press to switch frequency group FR (A-L)- Button power control: Long press for 6s & then short press toswitch power level 25/100/200/400/600 Note:- Make sure output terminal is installed antenna before power on- Pay attention to static electricity protection during transportation & installation Package Included:1* LDARC KKT30-V600 VTX



...
