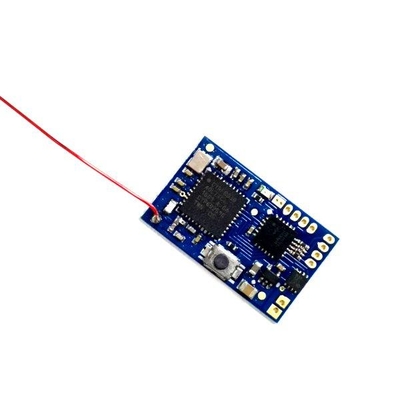

DasMikro DSM2 DSMX 7CH 2.4Ghz RC Micro Receiver With PPM Output

Product Description

Das Mikro DSM2 DSMX 7CH 2.4 Ghz RC Micro Receiver With PPM Output Description: Brand: Das Mikro Item:7CH 2.4 Ghz RC Micro Receiver Channels: 7channels (7channels PPM)1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel Receiving Sensitivity: -99d Bm Frequency Range: 2.4-2.48 G Hz Power: 3.7-5V DCWeight: 0.82g Antenna Length: 30mm
Size: 21mm*13mm*2.5mm
Colour: Blue Signal Output:CH1-CH7 output normal PWM signal When TEST is connected to GND, CH1 output 7 channel PPM signal 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel (Channel 1) Bind: Make sure the transmitter is power off. Power on DSM2/DSMX receiver. Long press the pair button. After around 2 seconds the led changed to fast flashing, now the receiver is in pairing mode. Then turn on the transmitter & make the transmitter to pairing mode. Wait the receiver led from fast flashing to turn off, now the pairing is done. Power off the transmitter & receiver then power on again then the receiver will work. Failsafe: Turn on the transmitter & the receiver & make sure receiver is working normally. Adjust each channel to the exact position you want to have in failsafe mode. Make sure the transmitter is not in pair mode. Long press the pair button & wait the led to be fast flashing, & now the failsafe data is saved. Power off the receiver & power on again the failsafe will work. Das Mikro 7CH Micro Receiver Manual, please clik here Package Included:1 XDas Mikro 7CH 2.4 Ghz RC Micro Receiver
