Das Mikro DSM2 DSMX 7CH 2.4 Ghz RC Micro Receiver With PPM Output Description: Brand: Das Mikro Item:7CH 2.4 Ghz RC Micro Receiver Channels: 7channels (7channels PPM)1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel Receiving Sensitivity: -99d Bm Frequency Range: 2.4-2.48 G Hz Power: 3.7-5V DCWeight: 0.82g Antenna Length: 30mm
Size: 21mm*13mm*2.5mm
Colour: Blue Signal Output:CH1-CH7 output normal PWM signal When TEST is connected to GND, CH1 output 7 channel PPM signal 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel (Channel 1) Bind: Make sure the transmitter is power off. Power on DSM2/DSMX receiver. Long press the pair button. After around 2 seconds the led changed to fast flashing, now the receiver is in pairing mode. Then turn on the transmitter & make the transmitter to pairing mode. Wait the receiver led from fast flashing to turn off, now the pairing is done. Power off the transmitter & receiver then power on again then the receiver will work. Failsafe: Turn on the transmitter & the receiver & make sure receiver is working normally. Adjust each channel to the exact position you want to have in failsafe mode. Make sure the transmitter is not in pair mode. Long press the pair button & wait the led to be fast flashing, & now the failsafe data is saved. Power off the receiver & power on again the failsafe will work. Das Mikro 7CH Micro Receiver Manual, please clik here Package Included:1 XDas Mikro 7CH 2.4 Ghz RC Micro Receiver

...

Description: Item Name:DSMX/DSM26CHNano RCReceiver Channels:6channels Power:3-10VDCAntenna Length:30mm Product
Size:9.9mm*9.2mm*2.5mm
...

Description: This RC receiver unit is Futaba S-FHSScompatible. It offers full 4-channel support in ultra-light weight & micro size. It is ideal for micro racing cars.
Features:1. Futaba 2.4 G Hz S-FHSS compatible 2. High performance CPU enhance precision control feeling 3. 4 channel support 4. Micro size (23x 15.5x 7mm)5. Ideal for any micro rc racing chassis 6. Added failsafe function 7. Operating Voltage 4.8V
- 7.4V:8. Weight: 2.7g Compatible Transmitters: Futaba 7PX, 4PX, 4PV, 3PV...... Package Included:1 x Receiver 4 x 1.5mm 3P JST plug with cable Bind & Failsafe: Power on your transmitter & receiver. Adjust transmitter each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done & the failsafe data is saved. Power off the transmitter & receiver then power on again then the receiver will work.

...

Specification: Item Das Mikro Sanwa Receiver Material Electronic component Color As the picture Weight 2.7g Description: This RC receiver unit is Sanwa FHSS-4 & FHSS-3 compatible. It offers full 4-channel support in ultra- light weight & micro size. It is ideal for micro racing cars.
Features:1. Das Mikro Sanwa 2.4 G Hz FH3/FH4 Selectable Via Transmitter 2. High performance CPU enhance precision control feeling 3. 4 channel support 4. Micro size (25.5x 18.5x 8.7mm)5. Ideal for any micro rc racing chassis 6. Added failsafe function 7. Operating Voltage 4.8V
- 7.4V:8. Weight: 2.7g 9. Battery Voltage Fail-Safe Limit: 3.5-5.0V (FH3) / 3.5-7.4V (FH4) Compatible Transmitters: Sanwa MT4 Sanwa MT4 S Sanwa M11 X Sanwa M12 Sanwa M12 S Sanwa EXZES ZZSanwa EXZES ZSanwa EXZES XSanwa MT-SSanwa MX-3 X Sanwa GEMINI X. Package included:1 x Receiver 4 x 1.5mm 3P JST Plug with Cable

...

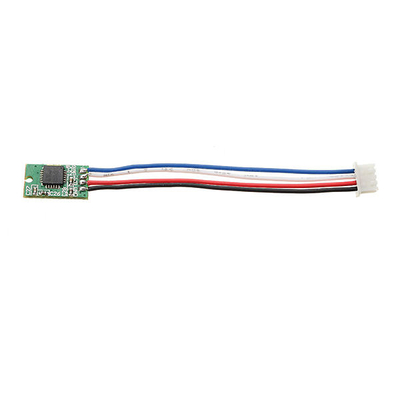

Gyro Unit Set For Kyosho Mini-Z RC Car Parts Description: Weight: 1g Wire Length: 80mm This Gyro Unit plugs right into the main board of your MR-03 & will help you keep your MR-03 under control. The Gyro Unit will automatic correct of steering & throttle. Basically it will keep the steering aimed to the global direction, so say your rear tires loose traction & the chassis come to an angle, this will counter steer for you faster than humanely possible. Very cool, & really impressive having the car stable like if it was following a rail on low traction surfaces (wood, tiles). Package Included:1 XGyro Unit Set ...

Description: The USB (Universal Serial Bus) Adapter HS lets you connect a PC or Android phone (need OTG to USB (Universal Serial Bus) converter) to the I.C.S. plug on your MINI-Z, & means that you can adjust various setting parameters. It supports the latest EVO chassis (only PC software available) & all previous Mini-z chassis (both PC software & Android app available). It also could be used to upgrade transmitters like EX-6, EX-6R, EX-1, EX-2, EX-RR. For KO PROPO transmitter/ESC/SERVO settings, you could download software from:http://kopropo.com/america/support/ics-interactive-communication-system/ For Kyosho transmitter & Mini-z, , you could download software fromhttp://kyosho.com/mini-z-info/support/settings-&-firmwaresoftware/ Package Included:1 x Das Mikro I.C.S. USB (Universal Serial Bus) Adaptor HS1 x 3P servo cable (for transmitter upgrade)1 x 3P to 4P cable (for Mini-z ICS settings) ...

null Description: This RC receiver unit is KYOSHO ASF compatible. It offers full 4-channel support in ultra-light weight & micro size. It is designed for micro racing cars.
Features:1. KYOSHO 2.4 G Hz ASF compatible 2. High performance CPU enhance exactness control feeling 3. 4 channel support 4. Micro size (19mm x 12mm)5. Ideal for any micro RC racing chassis 6. Added failsafe function 7. Operating Voltage 3.7V
- 8.4V:8. Product Weight: 2g Compatible Transmitters:KO PROPO EX-1 ASFKO PROPO EX-6RKO PROPO EX-6KYOSHO KT-18KO PROPO EX-5UR ASFKO PROPO 901SM/902SM RF Module Package Included:1 x Receiver 2 x 1.5mm 3P JST plug with cable Bind & Failsafe: Power on your transmitter & receiver. Adjust transmitter each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done & the failsafe data is saved. Power off the transmitter & receiver then power on again then the receiver will work. Wire Connection:

...

Das Mikro Micro Digital Servo Drive Board For Mini-Z MR03 AWD Servo Description: Digital servo drive board for Mini-Z MR03, AWD servo assembly. Very quick response speed. Maximum input 5.3V. It also could be used to transfer micro racing chassis to standalone receive. Like Mini-Z MR03/AWD, Mini-Z Lit, Dnano, Epoch 1/43, PNR2.5W, AMZ, AMR, ATM AMZ BZ & many aftermarket chassis Technical Data: Net Weight: 1g Operating Voltage: 3.6VS~5.3V
Size: 9*7*3mm Package Included:1 x Micro Digital Servo Drive Board
...

Description: This sound unit is developed for advanced users. It is ideal sound & light control system for 1:87 micro model RC conversion. It could be used to 1/87, 1/72, 1/48, 1/35 & 1/32 RC model. This sound unit is 100% compatible TBS Micro sound unit. This module does not have preload sound, you have to work with a programming cable & software to upload sound & make settings before use it.
Features: Soundquality 22 K Hz Internal 1W amplifier at 8 Ohm speakers Receiver signals are used for speed information Fully assembled in SMD technology (no heavy, vibration sensitive components) Very littledimensionsandweight Technical Datas: Dimension: 11x 16x 3, 2mm (Version A) 11 x 23, 5 x 3, 2mm (Version B) Voltage: 3.7V to 5V (supplied by the receiver) Note the maximum supply voltage of 5V! Current: app. 10m A without sound, app. 250m A at max. volume Speaker: 8-32 Ohm Output power: 1W at 8-Ohm at 5V; 0, 6W at 8-Ohm at 3 V Proportional inputs: Positive Impuls 1ms bis 2, 0ms Sound quality: up to 22, 05 k Hz Manual, software & sound are available, please click here. Optional (A): Without JST plug Optional (B): With JST plug Package Included:1 x Micro Sound Unit
...

Description: Item Brand: Das Mikro Item Name:USB Programming Cable
Material:ABS & electronic components
Colour:

...
