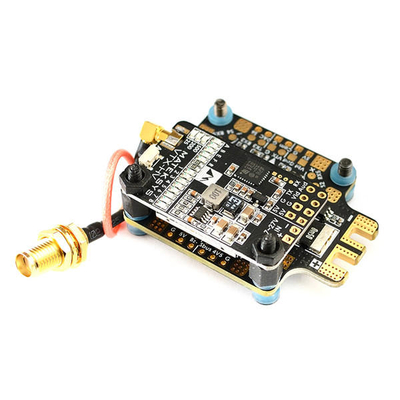

Matek BetaFlight F405-CTR Flight Controller Built-in PDB+Matek 5.8G
Video Transmitter VTX-HV For RC Drone
Matek BetaFlight F405-CTR Flight Controller Built-in PDB + Matek 5.8G Video Transmitter VTX-HVSpecification:Matek F405-CTR(User manual):Brand name: Matek SystemsItem name: BetaFlight F405-CTRSize: 36x46mm PCB with 30.5mm mounting holesWeight: 10gFC:MCU: 168MHz STM32F405IMU: MPU6000 accelerometer/gyro (SPI)Baro: BMP280 (I2C)OSD: BetaFlight OSD w/ AT7456E chipBlackbox: MicroSD card slot (SD/SDHC)VCP, UART1, UART2, UART3, UART4, UART5Built in inverter for SBUS input (UART2-RX)PPM/UART Shared: UART2-RXSoftSerial on TX2, S5 or S6 optionalCamera control on S6 or DAC optionalSmartaudioTramp VTX protocol supportedWS2812 Led Strip: YesBeeper: YesRSSI: YesPDB:Input: 6~30V (3~6S LiPo) w/TVS protectionPDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCBBEC: 5V 2A cont. (Max.3A)LDO 3.3V: Max.300mA
for Spektrum RXCurrent Sensor 184A (Scale 179)Battery Voltage Sensor: 1:10 (Scale 110)Matek 5.8G VTX-HV MMCX Ver.(user manual):Input voltage: 7~27V(2~6S LiPo)40 standard channels, A/B/E/F/R BandOutput Power: 25, 200, 500mW switchableBEC Output: 5V/1A for Camera or FCTraditional button+LED control of frequency and powerBFCMS control via FC UART _TXFirmware upgradeablePower Consumption: 3.1W Max. @ 500mWVideo Input Impedance: 75 OhmAudio Subcarrier Frequency: 6.5 MHzRF Connector: U.FL (IPEX)Video Format: NTSC/PALWeight: 6g (Tx only, w/o SMA cable)Size: 36*22*6.5mm w/30.5mm mountingPackage included:1x Matek Systems BetaFlight F405-CTR1xRubycon ZLH 35V/470uF (Low ESR)6x silicon grommets M4 to M31x FR
for Spektrum RXCurrent Sensor 184A (Scale 179)Battery Voltage Sensor: 1:10 (Scale 110)Matek 5.8G VTX-HV MMCX Ver.(user manual):Input voltage: 7~27V(2~6S LiPo)40 standard channels, A/B/E/F/R BandOutput Power: 25, 200, 500mW switchableBEC Output: 5V/1A for Camera or FCTraditional button+LED control of frequency and powerBFCMS control via FC UART _TXFirmware upgradeablePower Consumption: 3.1W Max. @ 500mWVideo Input Impedance: 75 OhmAudio Subcarrier Frequency: 6.5 MHzRF Connector: U.FL (IPEX)Video Format: NTSC/PALWeight: 6g (Tx only, w/o SMA cable)Size: 36*22*6.5mm w/30.5mm mountingPackage included:1x Matek Systems BetaFlight F405-CTR1xRubycon ZLH 35V/470uF (Low ESR)6x silicon grommets M4 to M31x FR
