Matek 5.8G 40CH 25/200/500m W switchable Video Transmitter VTX-HV with 5V/1A BEC Output Specifications Features (user manual): Input voltage: 7~27V (2~6S Li Po)40 standard channels, A/B/E/F/R Band Output Power: 25, 200, 500m W switchable BEC Output: 5V/1A for Camera or FCTraditional button+LED control of frequency & power BFCMS (BFOSD LUA Script) control via FC UART _TXFirmware upgradeable Power Consumption: 3.1W Max. @ 500m W Video Input Impedance: 75 Ohm Audio Subcarrier Frequency: 6.5 MHz RF Connector: U.FL (IPEX) Video Format: NTSC/PALWeight: 6g (Tx only, w/o SMA cable)
Size: 36*22*6.5mm w/30.5mm mounting Package included:1x 5.8G Video transmitter (MMCX)1x PVC Heat-shrink tube 1x MMCXto SMA Female, RG178 cable 9cm
...

MATEK Analog Pixel OSD Module 9-30V Support 8V Boost to 12V Voltage Power Regulater for FPV VTX Camera Flight Controller Description Brand Name: Matek Model: OSD Module Vbat/DC IN: 9-30 V On board regulator: 2A, 8v rise to 12v Note: Only Artificial Horizontal is graphical in INAV firmware, no graphical elements in BF firmware for now. Package Included 1 x OSD Module ...

Matek Beta Flight F405-CTR Flight Controller Built-in PDB + Matek 5.8G Video Transmitter VTX-HVSpecification: Matek F405-CTR (User manual): Brand name: Matek Systems Item name: Beta Flight F405-CTR
Size: 36x 46mm PCB with 30.5mm mounting holes Weight: 10g FC:MCU: 168 M Hz STM32F405IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C)OSD: Beta Flight OSD w/ AT7456E chip Blackbox: Micro SD card slot (SD/SDHC)VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX)PPM/UART Shared: UART2-RXSoft Serial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio Tramp VTX protocol supported WS2812 Led Strip: Yes Beeper: Yes RSSI: Yes PDB: Input: 6~30V (3~6S Li Po) w/TVS protection PDB: 4x 30A (Max.4x 46A), 6 layers*2oz copper PCBBEC: 5V 2A cont. (Max.3A)LDO 3.3V: Max.300m A for Spektrum RXCurrent Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110) Matek 5.8G VTX-HV MMCX Ver. (user manual): Input voltage: 7~27V (2~6S Li Po)40 standard channels, A/B/E/F/R Band Output Power: 25, 200, 500m W switchable BEC Output: 5V/1A for Camera or FCTraditional button+LED control of frequency & power BFCMS control via FC UART _TXFirmware upgradeable Power Consumption: 3.1W Max. @ 500m W Video Input Impedance: 75 Ohm Audio Subcarrier Frequency: 6.5 MHz RF Connector: U.FL (IPEX) Video Format: NTSC/PALWeight: 6g (Tx only, w/o SMA cable)
Size: 36*22*6.5mm w/30.5mm mounting Package included:1x Matek Systems Beta Flight F405-CTR1x Rubycon ZLH 35V/470u F (Low ESR)6x silicon grommets M4 to M31x FR

...

Only US$11.99, buy best matek crsf-pwm-v 10 crsf to pwm converter w/ variometer 10ch pwm output for tbs crsf protocol 2.4ghz 915mhz 868mhz 433mhz receiver sale online store at wholesale price. ...

Real Test of output voltage Input voltage output Electric current Effectiveness Curve Description: Input voltage range: 3~4.2V DCOutput: 5V 2 A Standby current: 5m A Pins distance: 2.54mm Size Weight: 27x 15x 3mm, 2g

Features:-VB2A5 is a compact, high-efficiency, synchronous step-up converter for asingle-cell Li-ion/polymer battery. It can boost the voltage to 5V, allowing youto run a receiver on a single cell lipo.-Use for 1cell Li-ion or Li Po.-Synchronous step-up converter.-Guaranteed 2A Output Current at VOUT = 5V from 3.3V Input-Reverse input polarity protection.-Over-temperature protection. Package Include:1x Voltage Booster

...

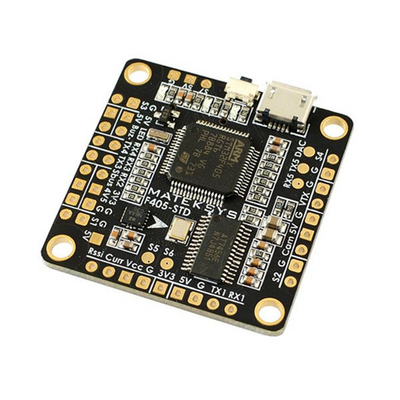

Matek F405-STDBeta Flight STM32F405 Flight Controller + Matek FCHUB-6S Hub Power Distribution Board Specification: Matek F405-STD (user manual): Brand: Matek Systems Item name: Flight Control Board
Size: 36x 36mm Mounting hole: 30.5mm Weight: 7g MCU: 168 M Hz STM32F405RGT6IMU: 32K ICM20602 gyro/accelerometer (SPI) Baro: BMP280 (I2C)OSD: Beta Flight OSD w/ AT7456E chip Blackbox: Micro SD card slot (SD/SDHC)VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX)PPM/UART Shared: UART2-RXSoft Serial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio Tramp VTX protocol supported Battery Voltage Sensor: 1:10 Current Sensor: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)BEC 5V: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)LDO 3.3V: Max.300m AI2C1 SDASCL: Yes WS2812 Led Strip: Yes Beeper: Yes RSSI: Yes Matek FCHUB-6S (user manual): Brand Name: Matek Model:FCHUB-6 S Item Name: Power Distribution Board Built-in Current Sensor
Size: 36x 36mm 30.5x 30.5mm Hole Mounting, M3 Weight: 8.5g BEC Output: 5V10V5V BEC Output:- Designed for RC Receivers, Flight Controllers, OSD & Servos.- DC/DC synchrous buck regulator- Voltage: 5.0V (4.9-5.1)DC
- Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)10V BEC Output:-Designed for VTX or FPV Camera- Voltage: 10.0V (9.8-10.2) DC
- Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)- 10V can be used to power cameras labeled as 12V.- The 3S Lipo input voltage should be 11V plus. Curr



...

Matek FCHUB-6S Hub Power Distribution Board 5V10V BEC Built-in 184A Current Sensor Describtion:-This PDB distribution power from from a 3-6S Lipo pack to 4 ESCs, as well as providing regulatedfiltered DC 5VDC 10V outputs for powering Cameras, RC receivers, Flight Controllers, Video Transmitters, LEDs, etc.- It also has buit-in 184A current sensor & offers a FFC socket to connect the Matek flight controller conviently. Specification: Brand Name: Matek Model:FCHUB-6 S Item Name: Power Distribution Board Built-in Current Sensor
Size: 36x 36mm 30.5x 30.5mm Hole Mounting, M3 Weight: 8.5g BEC Output: 5V10V5V BEC Output:- Designed for RC Receivers, Flight Controllers, OSD & Servos.- DC/DC synchrous buck regulator- Voltage: 5.0V (4.9-5.1)DC
- Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)10V BEC Output:-Designed for VTX or FPV Camera- Voltage: 10.0V (9.8-10.2) DC
- Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)- 10V can be used to power cameras labeled as 12V.- The 3S Lipo input voltage should be 11V plus. Current Sensor Module
- Max. Range: 184A- 3.3V ADC- Scale the output voltage to milliamps (1/10th m W/A): 179

Features:- Total 4 pairs ESC solder tabs are fix for X Type frame- Max. 27V input w/ TVS protection- Built-in current sensor 184A- PDB: 4*30A (4*46A, 5 seconds), 4 layers*2oz copper PCB-BEC 5V@1.5A (Max. 2A) w/ 100uf panasonic POSCAP filter
- BEC 10V@1.5A (Max. 2A) w/ 47uf TDK MLCC filter- 5V10V out






...

Matek FCHUB-W Fixed Wings PDB 3-6S Built-in 4 BEC & 104A Current Sensor for RC FPV Racing Drone Specification (user manual): Input voltage range: 9~30V (3~6S Li Po) w/TVS protection Current Senor: 104A, 3.3V ADC, Scale 317 Mounting: 30.5 x 30.5mm, Φ3mm Dimensions: 52 x 36 x 6 mm Weight: 13g 2x ESC power pads 4x BEC on board 3x LED indicators for 5V, 10V & Vx Soldering Holes & Pads:+ & –: Bettery & ESC power pads Curr: Current sensor output Vbat: Bettery voltage G: Ground 3V3: LDO 3.3V5V: BEC 5V10V: BEC 10 V Vx: BEC 5V/6V/7.2V ADJFFC connection: Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSDMT1: Motor 1 of INAV Flying Wing & Airplane MT2: Motor 2 of INAV Flying Wing & Airplane SV3~SV6: Servo 3~6 of INAV Flying Wing & Airplane VTX: Video Transmitter signal TX5 & RX5: UART5 of F405-STD/F722-STD/F405-OSDBEC 5V output: Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_ Strip, GPS module DC/DC synchronous buck regulator Voltage: 5.0 +/- 0.1VDCContinuous current: 2 Amps, Max.3 A Output Ripple: 20m V (VIn=24V, VOut=5V@2A load) Short-circuit tolerant (2 seconds)BEC 10V output: Designed for Video Transmitter, Gimble DC/DC synchronous buck regulator Voltage: 10.0 +/- 0.2VDC (Input voltage >11V) Continuous current: 2 Amps, Max.3 A Output Ripple: 20m V (VIn=24V, VOut=10V@2A load) Short-circuit tolerant (2 seconds)BEC Vx output: Designed for Servos DC/DC synchronous buck regulator Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 5 Amps, Max.5.5 A Output Ripple: 50m V (VIn=24V, V ...
