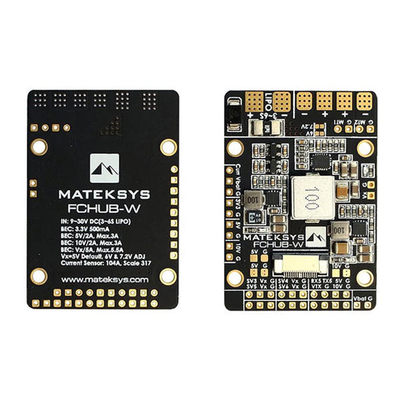

Matek FCHUB-W PDB 3-6S Built-in 4 BEC & 104A Current Sensor For RC FPV
Racing Drone
Matek FCHUB-W Fixed Wings PDB 3-6S Built-in 4 BEC & 104A Current Sensor for RC FPV Racing DroneSpecification (user manual):Input voltage range: 9~30V (3~6S LiPo) w/TVS protectionCurrent Senor: 104A, 3.3V ADC, Scale 317Mounting: 30.5 x 30.5mm, Φ3mmDimensions: 52 x 36 x 6 mmWeight: 13g2x ESC power pads4x BEC on board3x LED indicators for 5V, 10V & VxSoldering Holes & Pads:+ & –: Bettery & ESC power padsCurr: Current sensor outputVbat: Bettery voltageG: Ground3V3: LDO 3.3V5V: BEC 5V10V: BEC 10VVx: BEC 5V/6V/7.2V ADJFFC connection:Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSDMT1: Motor1 of INAV Flying Wing & AirplaneMT2: Motor2 of INAV Flying Wing & AirplaneSV3~SV6: Servo 3~6 of INAV Flying Wing & AirplaneVTX: Video Transmitter signalTX5 & RX5: UART5 of
F405-STD/F722-STD/F405-OSDBEC 5V output:Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS moduleDC/DC synchronous buck regulatorVoltage: 5.0 +/- 0.1VDCContinuous current: 2 Amps, Max.3AOutput Ripple: 20mV (VIn=24V, VOut=5V@2A load)Short-circuit tolerant (2 seconds)BEC 10V output:Designed for Video Transmitter, GimbleDC/DC synchronous buck regulatorVoltage: 10.0 +/- 0.2VDC (Input voltage >11V)Continuous current: 2 Amps, Max.3AOutput Ripple: 20mV (VIn=24V, VOut=10V@2A load)Short-circuit tolerant (2 seconds)BEC Vx output:Designed for ServosDC/DC synchronous buck regulatorVoltage adjustable, 5V Default, 6V or 7.2V via jumperContinuous current: 5 Amps, Max.5.5AOutput Ripple: 50mV (VIn=24V, V
F405-STD/F722-STD/F405-OSDBEC 5V output:Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS moduleDC/DC synchronous buck regulatorVoltage: 5.0 +/- 0.1VDCContinuous current: 2 Amps, Max.3AOutput Ripple: 20mV (VIn=24V, VOut=5V@2A load)Short-circuit tolerant (2 seconds)BEC 10V output:Designed for Video Transmitter, GimbleDC/DC synchronous buck regulatorVoltage: 10.0 +/- 0.2VDC (Input voltage >11V)Continuous current: 2 Amps, Max.3AOutput Ripple: 20mV (VIn=24V, VOut=10V@2A load)Short-circuit tolerant (2 seconds)BEC Vx output:Designed for ServosDC/DC synchronous buck regulatorVoltage adjustable, 5V Default, 6V or 7.2V via jumperContinuous current: 5 Amps, Max.5.5AOutput Ripple: 50mV (VIn=24V, V
