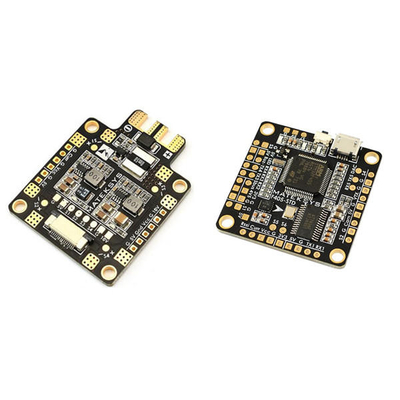

Matek F405-STD BetaFlight STM32F405 Flight Controller+Matek FCHUB-6S
Hub Power Distribution Board For RC Drone
Matek F405-STDBetaFlight STM32F405 Flight Controller + Matek FCHUB-6S Hub Power Distribution BoardSpecification:Matek F405-STD (user manual):Brand:Matek SystemsItem name:Flight Control BoardSize: 36x36mmMounting hole: 30.5mmWeight: 7gMCU: 168MHz STM32F405RGT6IMU: 32K ICM20602 gyro/accelerometer (SPI)Baro: BMP280 (I2C)OSD: BetaFlight OSD w/ AT7456E chipBlackbox: MicroSD card slot (SD/SDHC)VCP, UART1, UART2, UART3, UART4, UART5Built in inverter for SBUS input (UART2-RX)PPM/UART Shared: UART2-RXSoftSerial on TX2, S5 or S6 optionalCamera control on S6 or DAC optionalSmartaudioTramp VTX protocol supportedBattery Voltage Sensor: 1:10Current Sensor: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)BEC 5V: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)LDO 3.3V: Max.300mAI2C1 SDASCL: YesWS2812 Led
Strip: YesBeeper: YesRSSI: YesMatek FCHUB-6S (user manual):Brand Name: MatekModel:FCHUB-6SItem Name:Power Distribution Board Built-in Current SensorSize: 36x36mm30.5x30.5mm Hole Mounting, M3Weight: 8.5gBEC Output: 5V10V5V BEC Output:- Designed for RC Receivers, Flight Controllers, OSD and Servos.- DC/DC synchrous buck regulator- Voltage: 5.0V (4.9-5.1)DC - Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)10V BEC Output:-Designed for VTX or FPV Camera- Voltage: 10.0V (9.8-10.2) DC - Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)- 10V can be used to power cameras labeled as 12V.- The 3S Lipo input voltage should be 11V plus.Curr
Strip: YesBeeper: YesRSSI: YesMatek FCHUB-6S (user manual):Brand Name: MatekModel:FCHUB-6SItem Name:Power Distribution Board Built-in Current SensorSize: 36x36mm30.5x30.5mm Hole Mounting, M3Weight: 8.5gBEC Output: 5V10V5V BEC Output:- Designed for RC Receivers, Flight Controllers, OSD and Servos.- DC/DC synchrous buck regulator- Voltage: 5.0V (4.9-5.1)DC - Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)10V BEC Output:-Designed for VTX or FPV Camera- Voltage: 10.0V (9.8-10.2) DC - Current: 1.5A (Max. 2.0A 10S/minute)- Short-circuit tolerant (2 Seconds/minuate)- 10V can be used to power cameras labeled as 12V.- The 3S Lipo input voltage should be 11V plus.Curr
